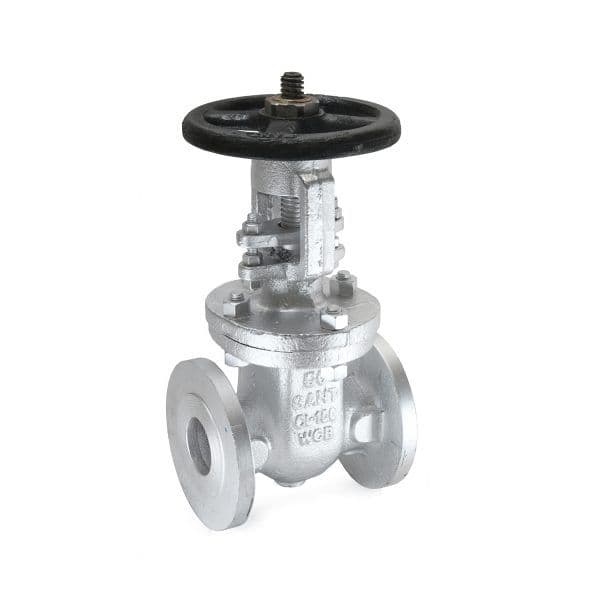

Product: Sant Cast Steel Gate Valve
Product Standard: Conforming to BS:EN-10434/API-600/BS:1414
Type of Pattern: Straight
Pressure/Class/Rating: Class-150
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Bolted Bonnet O/S Yoke type Rising Stem
Type of Seat: Renewable Seat
Type of Wedge: Solid / Flexible
Trim: SS AISI-410 with Aluminum Bronze Sleeve
End Details: Flanges as per ASME B 16.5 Class 150 R.F., undrilled
Body Test Pressure: 30barg Hyd. (435 Psig)
Seat Test Pressure: 22barg(320Psig.) Hyd. 6.9barg AIR (100Psig.)

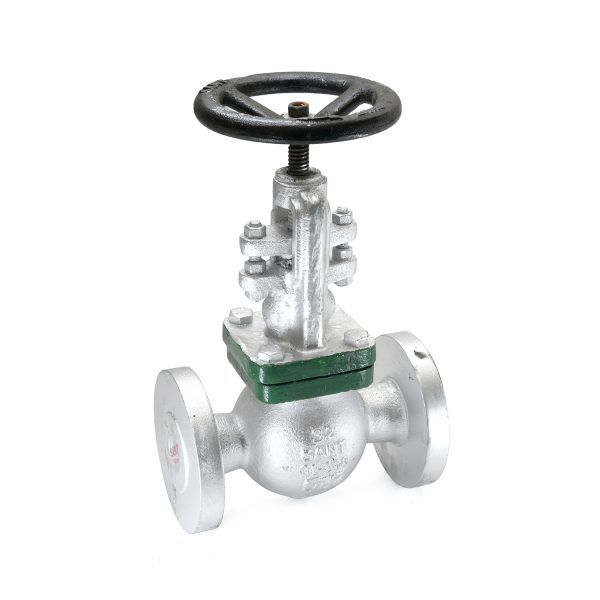

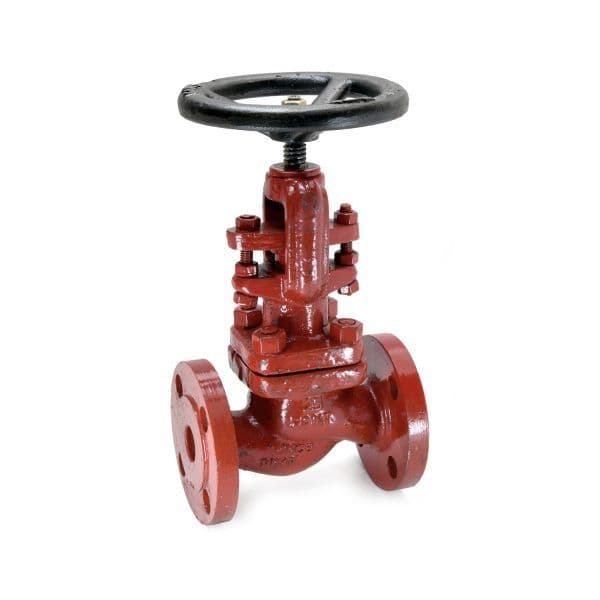

Product: Sant Cast Steel Globe Valve
Product Standard: BS:EN-13709/BS: 5160 / DIN 2401
Pressure/Class/Rating: PN-40
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Bolted Bonnet O/S & Yoke type Rising Stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: Stainless Steel AISI-410
End Details: Flanges as per BS 4504 Part-1/DIN 2545 RF undrilled
Body Test Pressure: 76barg (1100 Psig.) Hyd.
Seat Test Pressure: 40barg (580 Psig.) Hyd.

Product: Sant Cast Steel Globe Valve
Product Standard: Conforming to BS 1873-1975
Pressure/Class/Rating: Class-300
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Bolted Bonnet O/S Yoke type Rising Stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: SS AISI-410 component with Aluminum Bronze Yoke Bush
End Details: Flanges as per ASME B 16.5 Class-300 Undrilled
Body Test Pressure: 76barg Hyd. (1102 Psig.)
Seat Test Pressure: 56barg Hyd. (815Psig.) 6.9barg (100Psig.) AIR

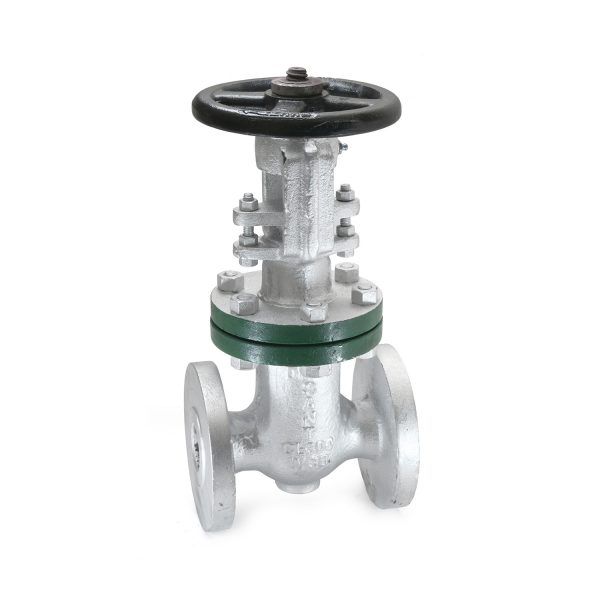

Product: Sant Cast Steel Gate Valve
Product Standard: Conforming to BS:EN-10434/API-600/BS:1414
Type of Pattern: Straight
Pressure/Class/Rating: Class-300
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Bolted Bonnet O/S Yoke type Rising Stem
Type of Seat: Renewable Seat
Type of Wedge: Solid / Flexible
Trim: SS AISI-410 with Aluminum Bronze Sleeve
End Details: Flanges as per ASME B 16.5 Class 300 R.F., undrilled
Body Test Pressure: 76barg Hyd. (1110 Psig)
Seat Test Pressure: 56barg(815Psig.) Hyd. 6.9barg AIR (100Psig.)

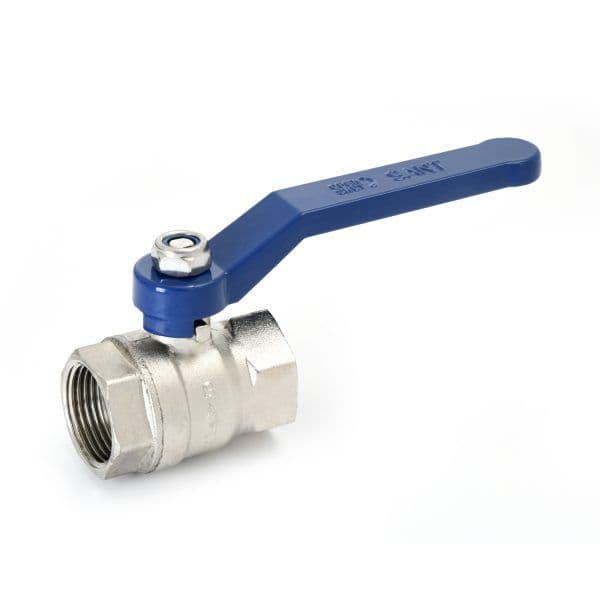

Product: Sant Forged Brass Ball Valve
Pressure/Class/Rating: PN-25
Body Material cum standard: Forged Brass IS:6912 GR FLB
Product Description: Two piece design lever operated
Type of Seat: Renewable P.T.F.E. Seat
Type of Ball: Brass (Nickle Plated)
Stem: Machined Brass Nickle Plated
Packings: P.T.F.E.
Port Opening: Full Bore
End Details: Screwed female BSP Parallel Threads
Body Test Pressure: 40kg/cm²g Hyd.
Working Pressure: 25kg/cm²g Hyd.

Product: Sant Forged Brass Ball Valve
Pressure/Class/Rating: PN-25
Body Material cum standard: Forged Brass IS:6912 GR FLB
Product Description: Two piece design lever operated
Type of Seat: Renewable P.T.F.E. Seat
Type of Ball: Brass (Nickle Plated)
Stem: Machined Brass Nickle Plated
Packings: P.T.F.E.
Port Opening: Full Bore
End Details: Screwed female BSP Parallel Threads
Body Test Pressure: 40kg/cm²g Hyd.
Working Pressure: 25kg/cm²g Hyd.

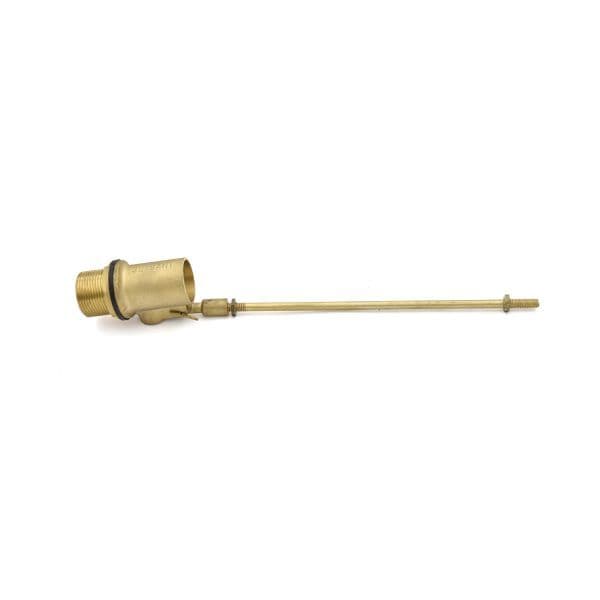

Product: Sant Forged Brass Float Valve
Body Material cum standard: Forged Brass IS:6912 GR FLB
Product Description: Horizontal Plunger Type
End Details: Screwed End BSP (Parallel Threads)
Body Test Pressure: 1.05 MPa

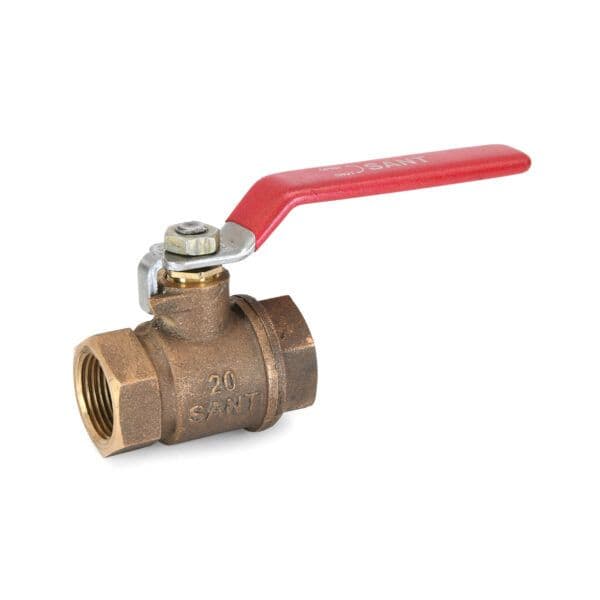

Product: Sant Bronze Ball Valve
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: 2 pc design lever operated
Type of Seat: Renewable PTFE Seats
Port Opening: Standard Bore
Trim: Stem SS AISI 410 Ball SS 304/CF8
Gland Packing: Teflon
End Details: Screwed female threads to IS-554 Parallel
Body Test Pressure: 40 kg/cm²g Hyd.
Seat Test Pressure: 25 kg/cm²g Hyd.

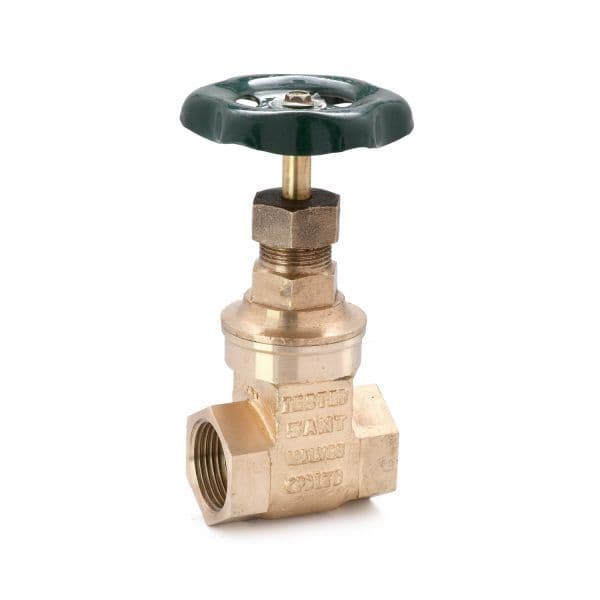

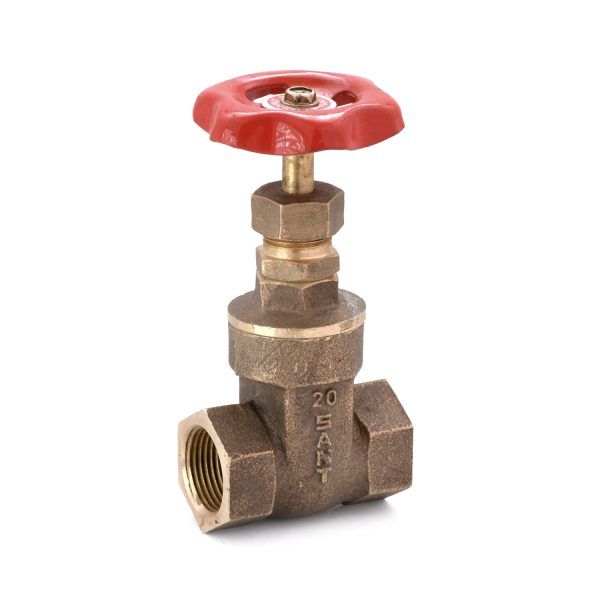

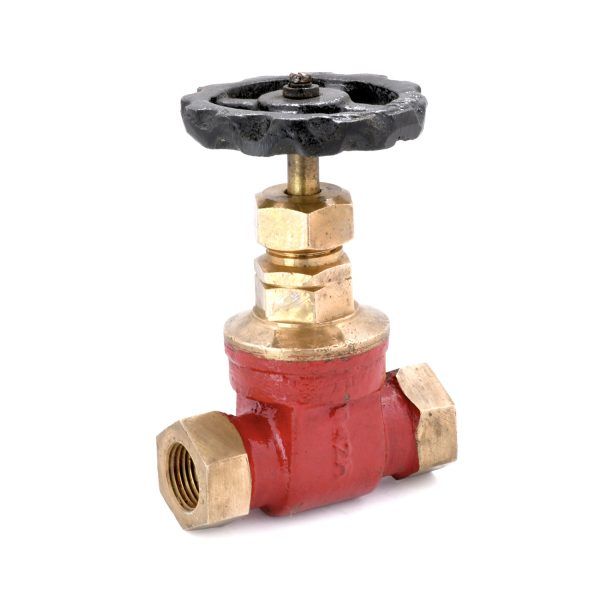

Product: Sant Bronze Gate Valve
Product Standard: IS-778
Pressure/Class/Rating: Class-1
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Bonnet, Inside Screw, Non-Rising Stem
Type of Seat: Integral seat
Type of Wedge: Solid wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female thread to IS:554 parallel
Body T.P.: 1.5MPa Hyd.
Seat T.P.: 1.0MPa Hyd.

Product: Sant Bronze Gate Valve
Product Standard: IS-778
Pressure/Class/Rating: Class-2
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Bonnet, Inside Screw, Non-Rising Stem
Type of Seat: Integral seat
Type of Wedge: Solid wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female threads to IS:554 parallel
Body T.P.: 2.4MPa Hyd.
Seat T.P.: 1.6MPa Hyd.

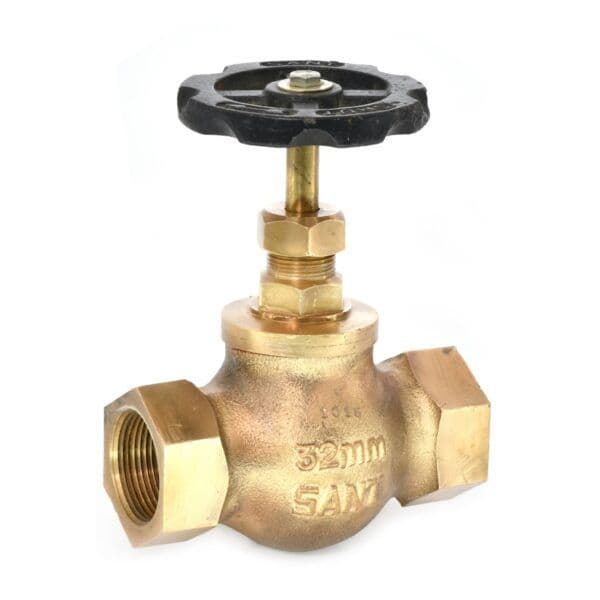

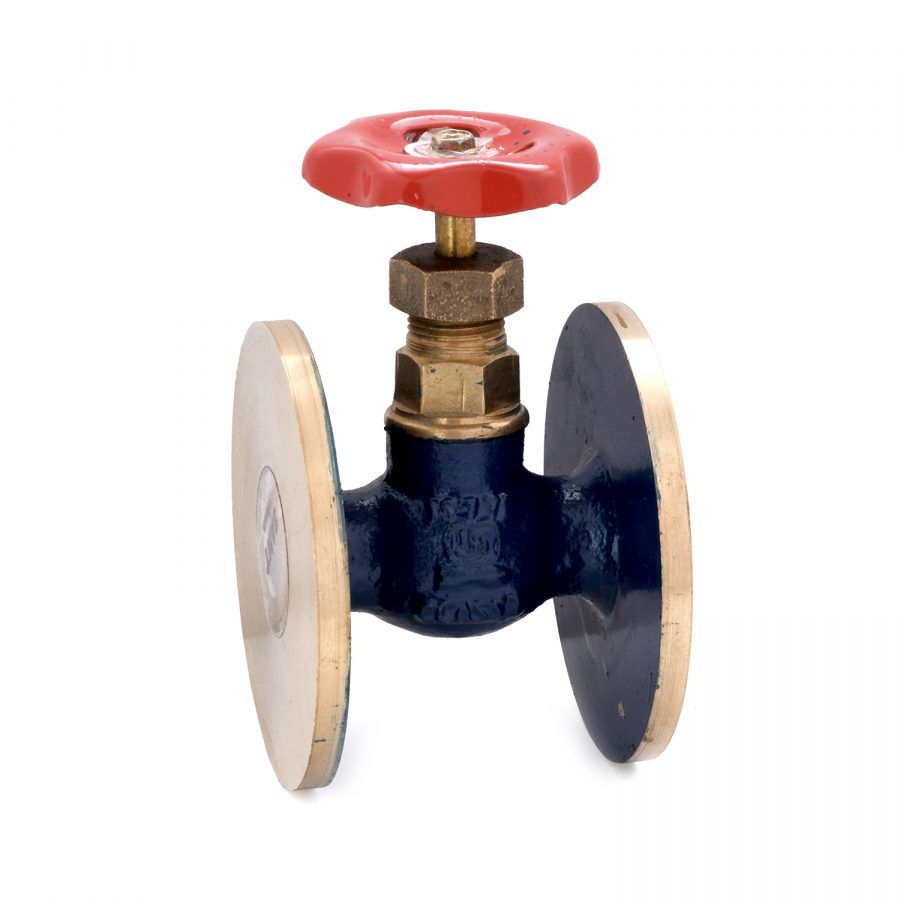

Product: Sant Bronze Globe Valve
Product Standard: I5-778
Pressure/Class/Rating: Class-1
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Bonnet, Inside Screw, Rising Stem
Type of Seat: Integral seat
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Flanges as per IS-778 CI-1 FF (undrilled)
Body T.P.: 1.5MPa Hyd.
Seat T.P.: 1.0MPa Hyd.

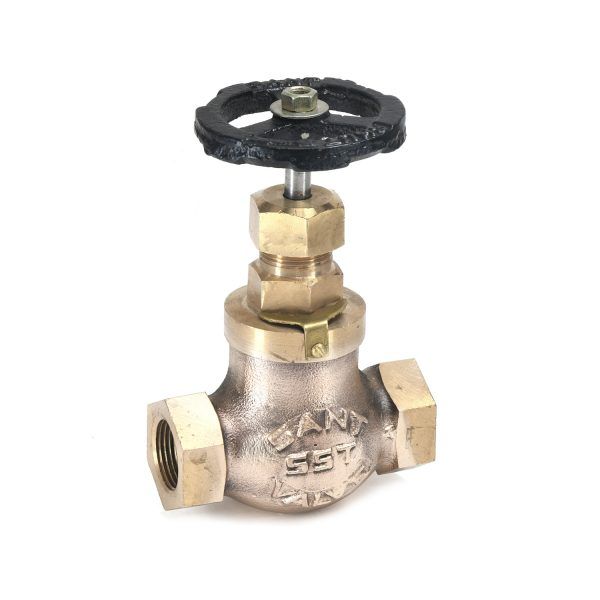

Product: Sant Bronze Globe Steam Stop Valve
Type of Pattern: Straight Type
Body Material cum standard: Bronze IBR Clause 282 (a) IV GrB
Product Description: Screwed in bonnet inside screw rising stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: SS AISI-410
Gland Packing: Expanded Pure Flexible Graphite
End Details: Screwed female BSP Taper Threads to BS 21
Test Pressure: Tested to 500Psig. Hyd. (35.15 kg/cm² (Hyd.)
Working Pressure: Max. BOP 250Psig. (17.58kg/cm²) at 435°F(225°C)

Product: SBM Bronze Gate Valve
Type of Pattern: Peglar Type PN-20
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Product Description: Screwed in bonnet inside screw non rising stem
Type of Seat: Integral Seat
Type of Disc: Solid Wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female BSP threads to BS-21
Body Test Pressure: 30 kg/cm²g Hyd.
Seat Test Pressure: 20 kg/cm²g Hyd.

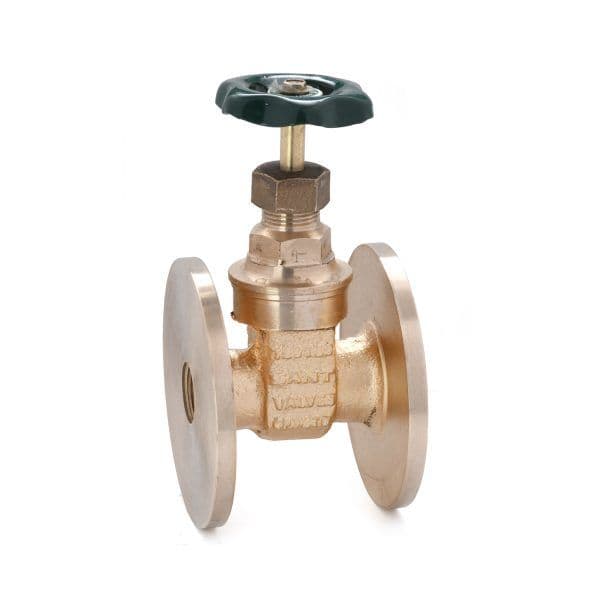

Product: SBM Bronze Gate Valve Flanged
Pressure Rating: PN 20
Type of Pattern: Standard Pattern
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Product Description: Screwed in bonnet inside screw non rising stem
Type of Seat: Integral Seat
Type of Disc: Solid Wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Flanges as per BS 10 Table D F.F. Undrilled
Body Test Pressure: 30 kg/cm²g Hyd.
Seat Test Pressure: 20 kg/cm²g Hyd.

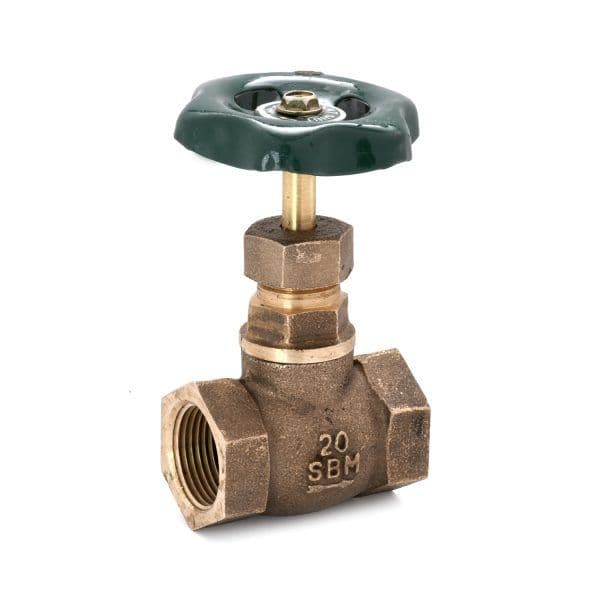

Product: SBM Bronze Globe Valve No. 4
Pressure Rating : PN 16
Type of Pattern: Medium Duty
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Product Description: Screwed in bonnet inside screw rising stem
Type of Seat: Integral Seat
Type of Disc: Renewable Disc
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female BSP threads to BS-21
Body Test Pressure: 24 kg/cm²g Hyd.
Seat Test Pressure: 16 kg/cm²g Hyd.

Product: SBM Bronze Globe Valve No. 5
Type of Pattern: Standard Pattern
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Product Description: Screwed in bonnet inside screw rising stem
Type of Seat: Integral Seat
Type of Disc: Renewable Disc
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female BSP threads to BS-21
Body Test Pressure: 35.15kg/cm²g (500Psig.) Hyd.
Seat Test Pressure: 21.09kg/cm²g (300Psig.) Hyd.

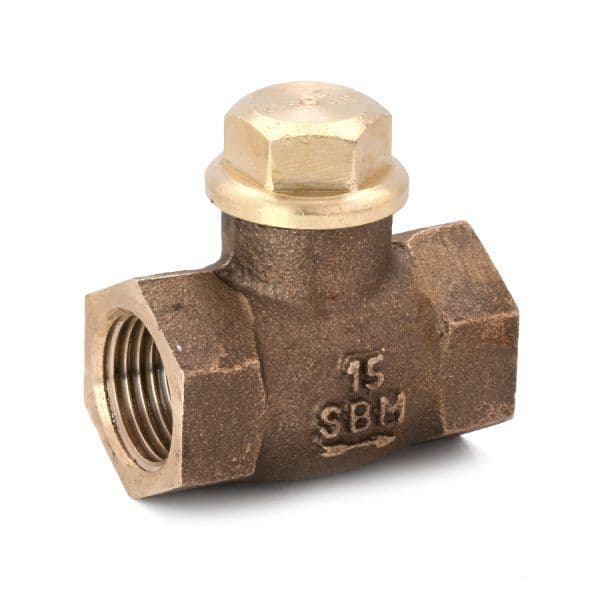

Product: SBM Bronze Horizontal Lift Check Valve No. 4
Pressure Rating: PN 16
Type of Pattern: Standard Pattern
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Product Description: Screwed in cover
Type of Seat: Integral Seat
Type of Disc: Renewable Disc
Trim: Cu-Alloy
End Details: Screwed female BSP threads to BS-21
Body Test Pressure: 24 kg/cm²g Hyd.
Seat Test Pressure: 16 kg/cm²g Hyd.

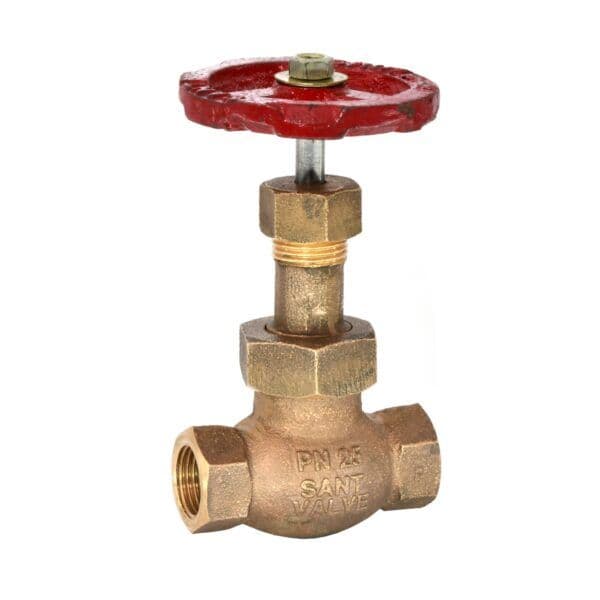

Product: SBM Bronze Union Bonnet Globe Valve
Product Standard: Conforming to IS 778 Class-2
Pressure/Class/Rating: PN-25
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Product Description: Screwed on bonnet inside screw rising stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: SS AISI-410
Gland Packing: Graphited Asbestos
End Details: Screwed Female BSP Threads to IS 554 Parallel
Body Test Pressure: 40 kg/cm²g Hyd.
Seat Test Pressure: 25 kg/cm²g Hyd.

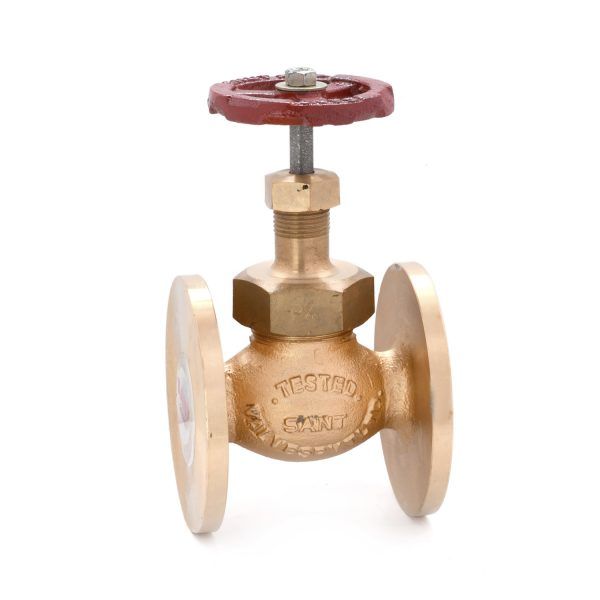

Product: SBM Bronze Union Bonnet Globe Valve
Product Standard: Conforming to IS 778 Class-2
Pressure/Class/Rating: PN-25
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Product Description: Screwed on bonnet screw rising stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: SS 410
Gland Packing: Graphited Asbestos
End Details: Flanges as per BS 10 Table F Undrilled
Body Test Pressure: 40 kg/cm²g Hyd.
Seat Test Pressure: 25 kg/cm²g Hyd.

Product: SBM Bronze Union Bonnet Horizontal Lift Check Valve
Product Standard: Conforming to IS 778 Class-2
Pressure/Class/Rating: PN-25
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Product Description: Screwed on Cover
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: SS 410
End Details: Flanges as per BS 10 Table-F Undrilled
Body Test Pressure: 40 kg/cm²g Hyd.
Seat Test Pressure: 25 kg/cm²g Hyd.

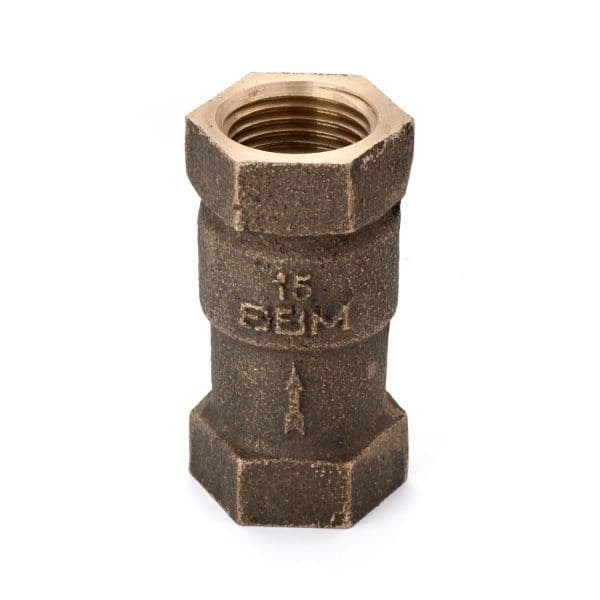

Product: SBM Bronze Vertical Lift Check Valve
Type of Pattern: Standard Pattern
Body Material cum standard: Bronze IS:318 Gr. LTB 2
Type of Seat: Integral Seat
Type of Disc: Renewable Disc
Trim: Cu-Alloy
End Details: Screwed female BSP threads to BS-21
Body Test Pressure :24 kg/cm²g Hyd.
Seat Test Pressure: 16 kg/cm²g Hyd.

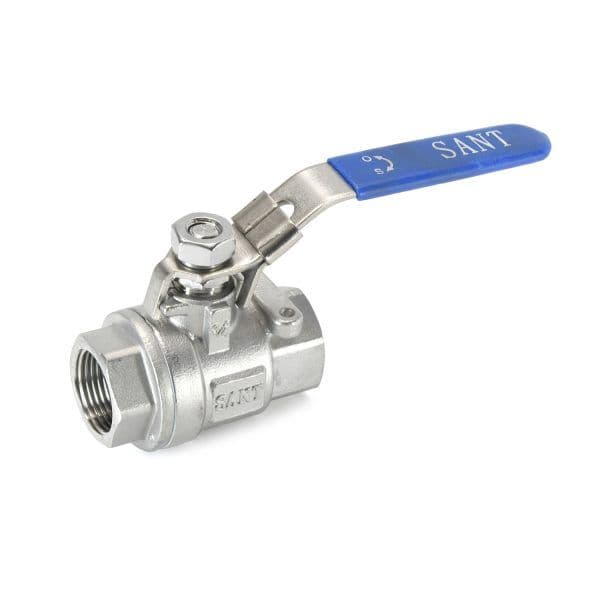

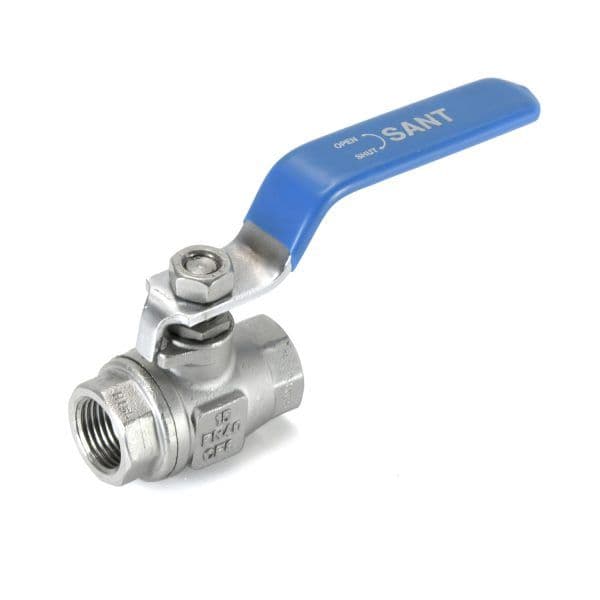

Product: Sant Stainless Steel Ball Valve
Body Material Cum Standard: SS CF 8 M
Product Description: Two Piece Design Lever Operated
Type of Seat: Renewable PTFE Seat
Type of Ball: CF-8M/SS 316
Stem: 55 316
Packing: PTFE
End Details: Screwed Female BSP Taper Threads
Port Opening: Full Bore
Body Test Pressure: 100 kg/cm²g Hyd.
Seat Test Pressure: 60 kg/cm²g Hyd.

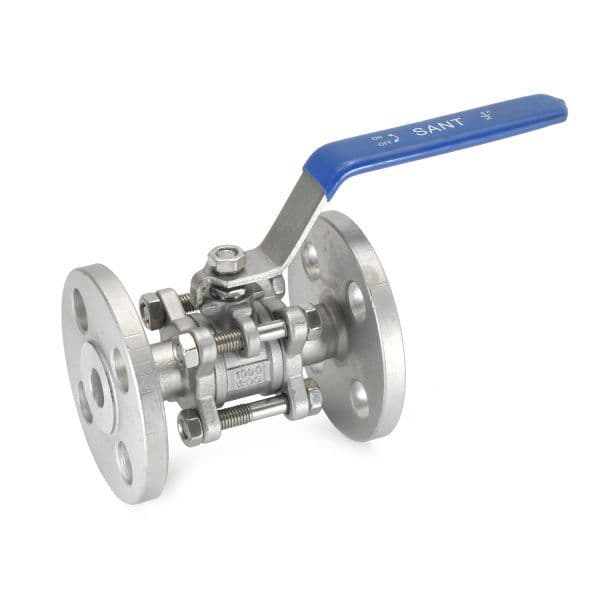

Product: Sant Stainless Steel Ball Valve (F), SS (304)
Pressure/Class/Rated: Class-150
Body Material Cum Standard: S.S. AISI 304 (CF-8)
Product Description: 3 Pc Design Lever Operated
Type of Seat: Renewable
Stem: AISI 410
Ball: AISI 304 (CF-8)
Seat Ring & Gland Packing: PTFE
End Details: Flanges as per B 16.5 Class-150 (Drilled)
Body Test Pressure: 30 Barg (435psig. Hyd.)
Seat Test Pressure: 22 barg (320psig. Hyd.)
Max. Working Temp.: 225°C

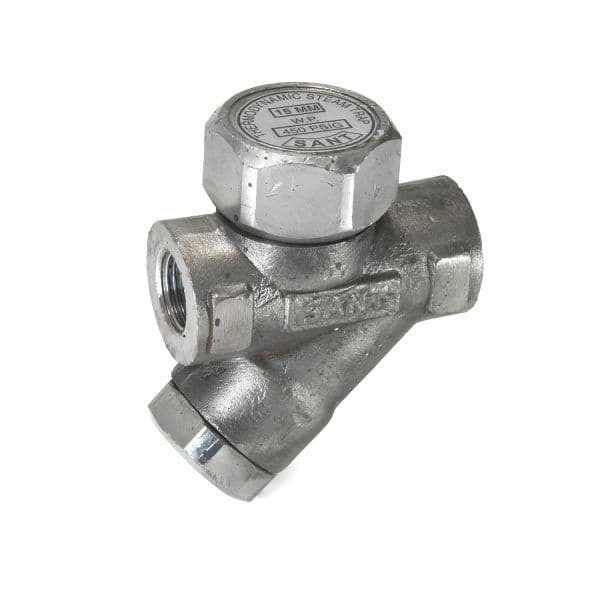

Product: Sant I.C. Stainless Steel Steam Trap
Body Material cum standard: Stainless Steel ASTM A 743 Gr. CA40
Product Description: Thermodynamic Type Steam Trap
Trim: AISI 420 with inbuilt strainer
End Details: Screwed Female BSP Taper Threads to BS 21
Body Test Pressure: 63.3 kg/cm² 900 Psig. (Hyd.)
Working Pressure: Suitable for 450 Psig. (31.65 kg/cm²)
Maximum Temperature: 400°C (750°F)

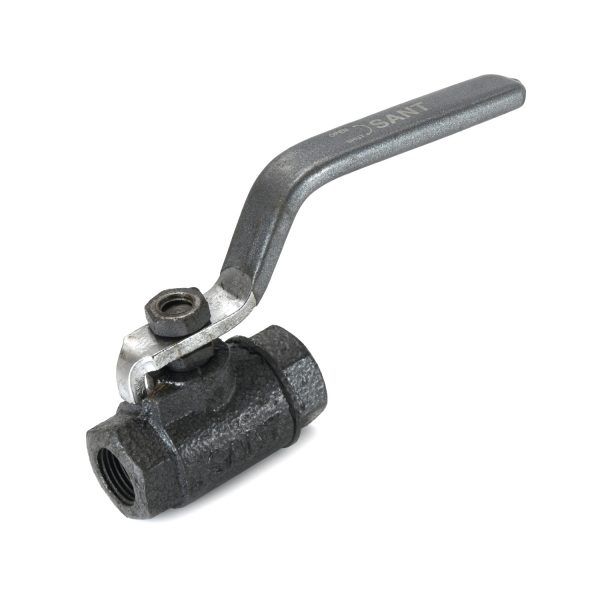

Product: Sant C.I. Ball Valve
Product Standard: IS-9890-1981 Class-125
Type of Pattern: Straight
Body Material cum standard: Cast Iron IS 210 Gr. FG 220
Product Description: Two piece design
Type of Seat: Renewable Teflon
Trim: AISI 410 Stem, Stainless Steel AISI 304 Ball
Gland Packing: Teflon Rings
End Details: Screwed Female Parallel Threads as per IS:554
Body Test Pressure: 21barg 300Psig. Hyd.
Seat Test Pressure: 220Psig.(15.4barg) Hyd. & 100Psig. (6.9 bar) AIR
ISI Marked

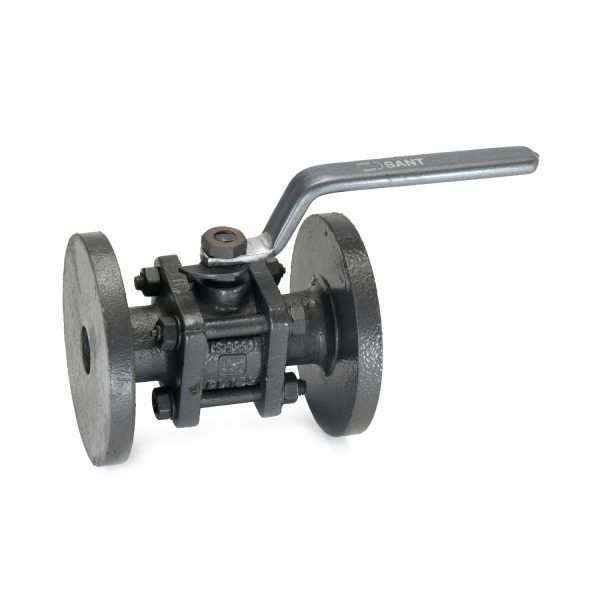

Product: Sant C.I. Ball Valve
Product Standard: IS-9890-1981 Class-125
Body Material cum standard: Cast Iron IS 210 Gr. FG 220
Product Description: Three piece design
Type of Seat: Renewable Teflon Seat
Trim: AISI 410 Stem Stainless Steel AISI 304 Ball
Gland Packing: Teflon Rings
End Details: Flanges as per IS:3516-1966 Undrilled
Body Test Pressure: 21barg 300Psig. Hyd.
Seat Test Pressure: 220Psig. (15.4barg) Hyd. & 100Psig. (6.9 bar) AIR
ISI Marked

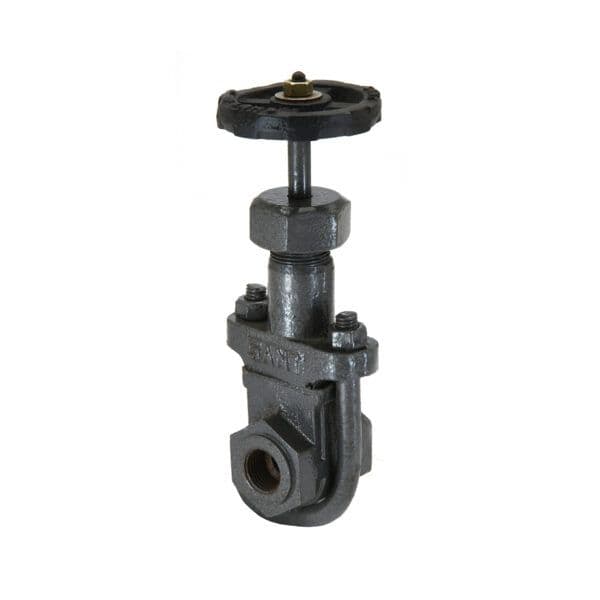

Product: Sant C.I. Gate Valve (All Iron)
Type of Pattern: Clip Pattern
Body Material cum standard: Cast Iron IS 210 Gr. FG 200
Product Description: Clamped Bonnet Inside Screw Rising Stem
Type of Seat: Integral Seat
Type of Disc: Solid Wedge
Trim: Mild Steel
Gland Packing: Expanded Pure Flexible Graphite
End Details: Screwed Female BSP Parallel Threads to BS:21
Body Test Pressure: 21.09kg/cm² Hyd. 300Psig. Hyd.
Seat Test Pressure: 14.06kg/cm²g (200Psig. Hyd.)

Product: Sant C.I. Gate Valve
Type of Pattern: Clip Pattern
Body Material cum standard: Cast Iron IS 210 Gr. FG 200
Product Description: Clamped Bonnet Inside Screw Rising Stem
Type of Seat: Renewable
Type of Disc: Solid Wedge
Trim: Cu-Alloy
Gland Packing: Expanded Pure Flexible Graphite
End Details: Screwed Female BSP Parallel Threads to BS:21
Body Test Pressure: 21.09kg/cm² Hyd.
Seat Test Pressure: 14.06kg/cm²g Hyd.

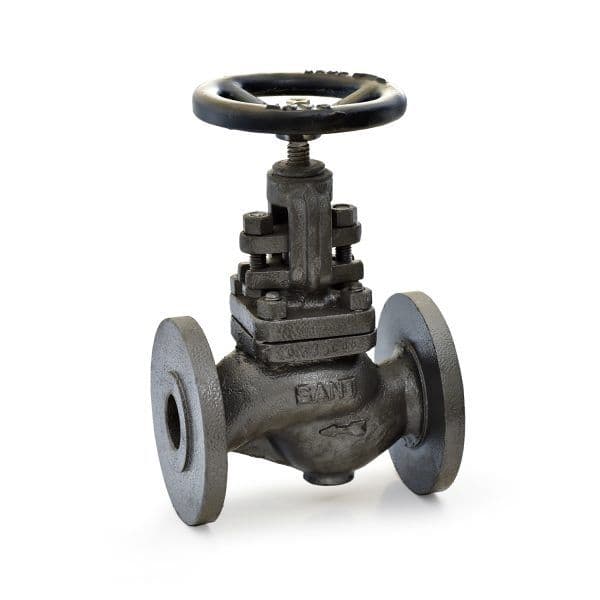

Product: Sant C.I. Globe Valve
Product Standard: BS:EN-13789/ DIN 86251 / BS: 5152
Type of Pattern: Straight Pattern
Pressure/Class/Rating: PN-16
Body Material cum standard: Cast Iron IBR 86 to 93 Grade A
Product Description: Bolted Bonnet, outside screw & yoke type Rising Stem
Type of Seat: Renewable
Type of Disc: Renewable Disc
Trim: SS-410
Gland Packing: Expanded Pure Flexible Graphite
End Details: Flanges as per DIN 2533 RF (PN 16) Undrilled
Test Pressure: Body 26kg/cm²g Seat 16kg/cm²g Hyd.
Working Pressure: Max BOP 13kg/cm²g at 220°C Steam

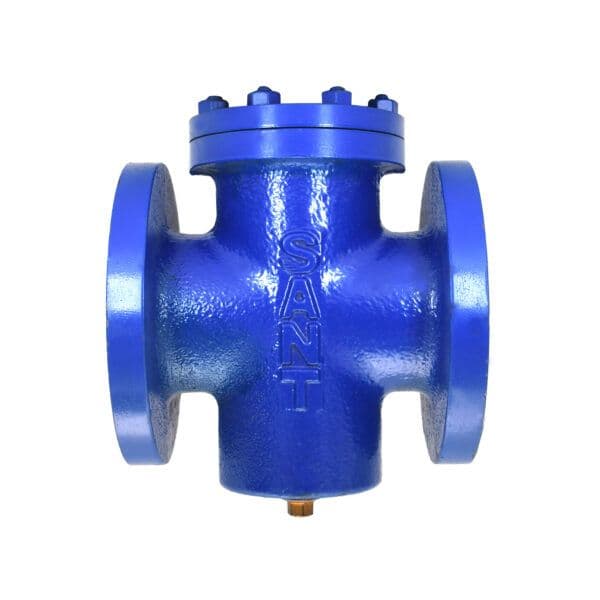

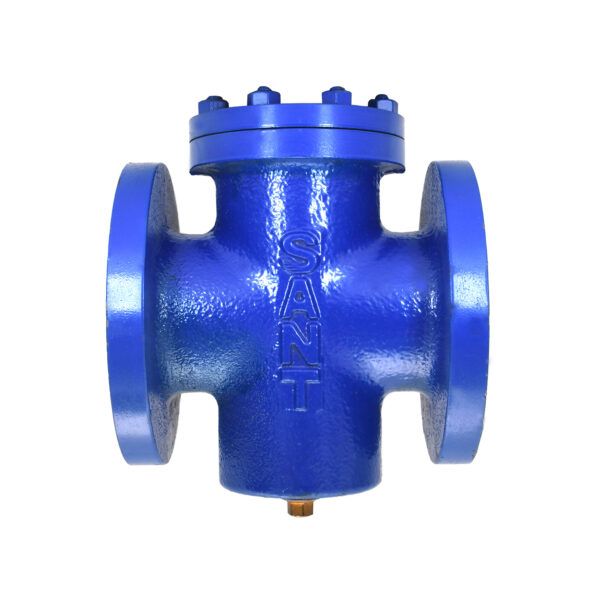

Product: Sant C.I. 'T' Strainer Flanged
Type of Pattern: Tee Type
Body Material cum standard: Cast Iron IS 210 Gr FG 200
Product Description: Bolted Bonnet
Trim: SS 304 Screen 1.2 perforation
End Details: Flanged as per Class-150
Body Test Pressure: 24kg/cm²g Hyd.
Working Pressure: 16kg/cm²g Hyd.
(For Water Lines)

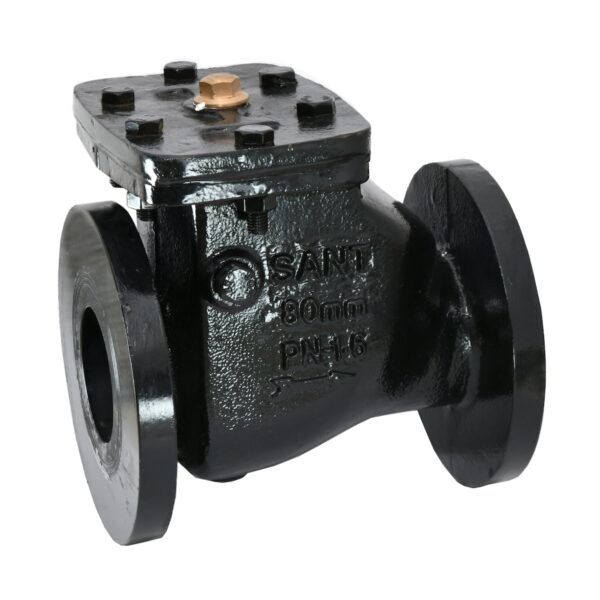

Product: Sant C.I. Reflux Valve (Non-Return Valve)
Product Standard: IS 5312 Part-I, ISI MARKED
Type of Pattern: Straight Type
Body Material cum standard: IS-210 Gr. FG-200 Cast Iron
Product Description: Bolted Cover
Type of Seat: Integral Seat / Renewable
Type of Disc: Renewable
Trim: Body Seat Ring Gun Metal & Seat Ring Rubber
End Details: Flanges as per IS:1538
Body Test Pressure: 1.5 MPa Hyd.
Seat Test Pressure: 1.0 MPa Hyd.

Product: Sant C.I. Reflux Valve (Non-Return Valve)
Product Standard: IS 5312 Part-I, ISI MARKED
Type of Pattern: Straight Type
Pressure/Class/Rating: PN-1.6
Body Material cum standard: IS-210 Gr. FG-200 Cast Iron
Product Description: Bolted Cover
Type of Seat: Integral Seat / Renewable
Type of Disc: Renewable
Trim: Body Seat Ring Gun Metal & Seat Ring Rubber
End Details: Flanges as per IS-1538
Body Test Pressure: 2.4MPa (348Psig. Hyd.)
Seat Test Pressure: 1.6MPa (232Psig. Hyd.)

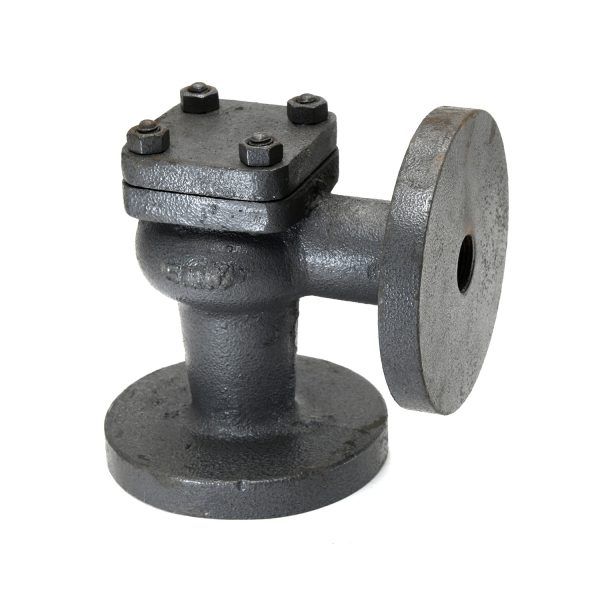

Product: Sant C.I. Lift Check Valve
Product Standard: BS:EN-12334 / BS: 5153
Type of Pattern: Right Angle
Pressure/Class/Rating: PN-16
Body Material cum standard: Cast Iron IBR 86 to 93 Grade A
Product Description: Bolted Cover
Type of Seat: Renewable
Type of Disc: Renewable Disc
Trim: SS-410
Gland Packing:
End Details: Flanges as per DIN 2533 RF (PN 16) Undrilled
Test Pressure: Body 26kg/cm²g Seat 16kg/cm²g Hyd.
Working Pressure: Max BOP 13kgf/cm²g at 220°C Steam

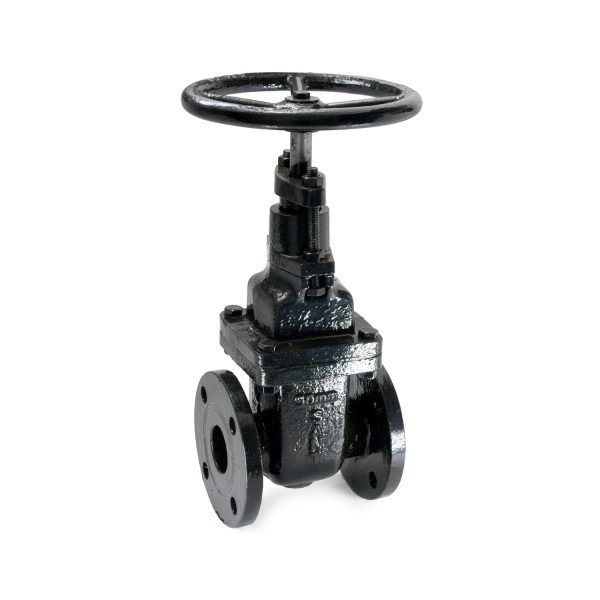

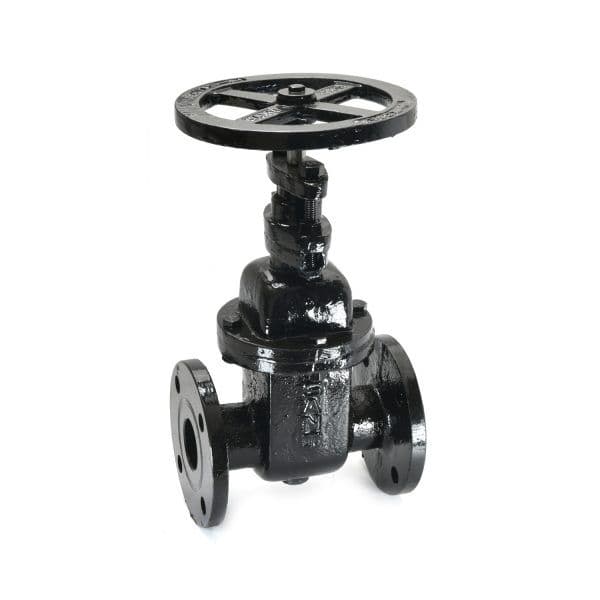

Product: Sant C.I. Wedge Gate Sluice Valve
Product Standard: Face to Face, flange dimensions as per IS-780
Pressure/Class/Rating: PN 1.0
Body Material cum standard: IS 210 Gr. FG 200 Cast Iron
Product Description: Bolted bonnet inside screw non rising stem
Type of Seat: Renewable
Type of Wedge: Renewable Solid Wedge
Trim: Cu-Alloy Seats, Stem SS AISI 410
Gland Packing: Expanded Pure Flexible Graphite
End Details: Flanges as per IS-780/IS-1538 FF Drilled
Body Test Pressure: 1.5 MPa Hyd.
Seat Test Pressure: 1.0 MPa Hyd.

Product: Sant C.I. Wedge Gate Sluice Valve
Product Standard: IS-14846 duly ISI Marked
Pressure/Class/Rating: PN 1.0 PD Type
Body Material cum standard: IS-210 Gr. FG-200 Cast Iron
Product Description: Bolted Bonnet inside screw non-rising stem
Type of Seat: Renewable
Type of Wedge: Solid Wedge
Trim: Cu-Alloy Rings, stem SS (12 Cr. 12)
Gland Packing: Expanded Pure Flexible Graphite
End Details: Flanges as per IS 1538 F/F Drilled
Body Test Pressure: 1.5 MPa Hyd.
Seat Test Pressure: 1.0 MPa Hyd.

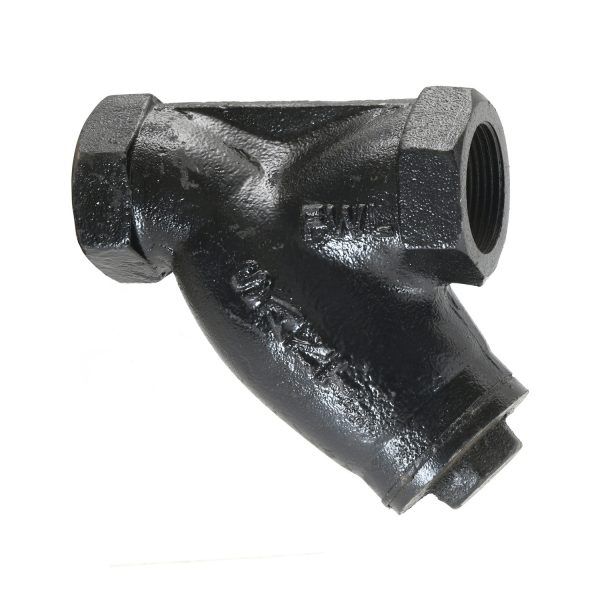

Product: Sant C.I. Y Type Strainer
Type of Pattern: Y Type
Body Material cum standard: Cast Iron IS 210 Gr FG 200
Product Description: Screwed in cover
Trim: SS 304 Screen having 1.2mm perforation
End Details: Screwed female BSP Parallel threads to BS-21
Test Pressure: 24kg/cm²g Hyd.
Working Pressure: 16kg/cm²g Hyd.
(For Water Lines)

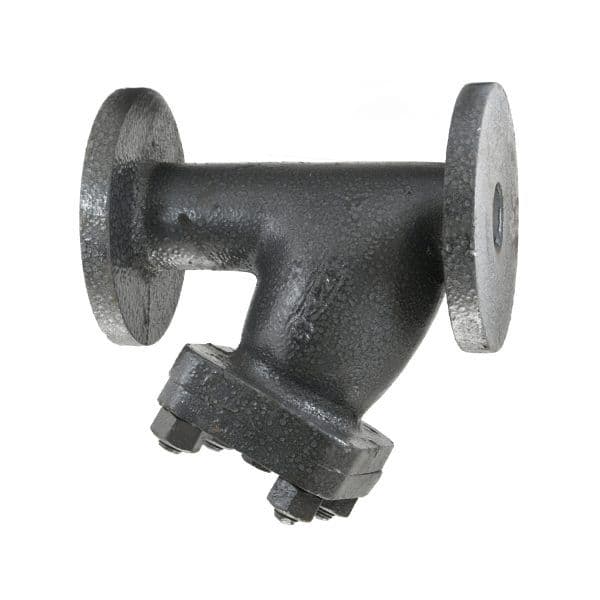

Product: Sant C.I. Y Type Strainer
Type of Pattern: Y Type
Body Material cum standard: Cast Iron IS 210 Gr. FG 200
Product Description: Screwed / Bolted Cover
Trim: S.S. Screen/SS 304 having 1.2mm perforation
End Details: Flanges as per BS 10 Table F undrilled
Body Test Pressure: 24kg/cm²g Hyd.
Working Pressure: 16kg/cm²g Hyd.
(For Water Lines)
(With Magnet 15% Extra Rates)

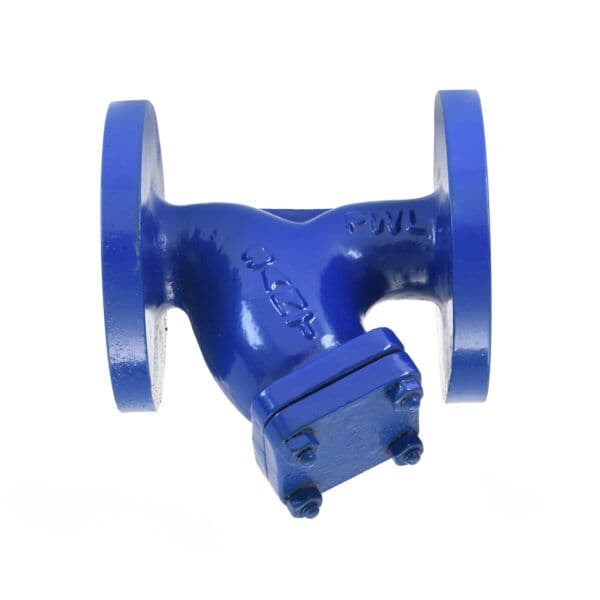

Product: Sant C.I. Y Type Strainer
Type of Pattern: Y-Type
Body Material cum standard: Cast Iron IBR 86 to 93 Grade A
Product Description: Bolted Cover
Trim: SS 304 Screen having 1.2 mm dia perforation
End Details: Flanges as per BS-10 Table F F.F. undrilled
Test Pressure: 21.09kg/cm² (300 Psig. Hyd.)
Working Pressure: Max BOP 10.54kgf/cm²g. (150 Psig.) at 220°C Steam

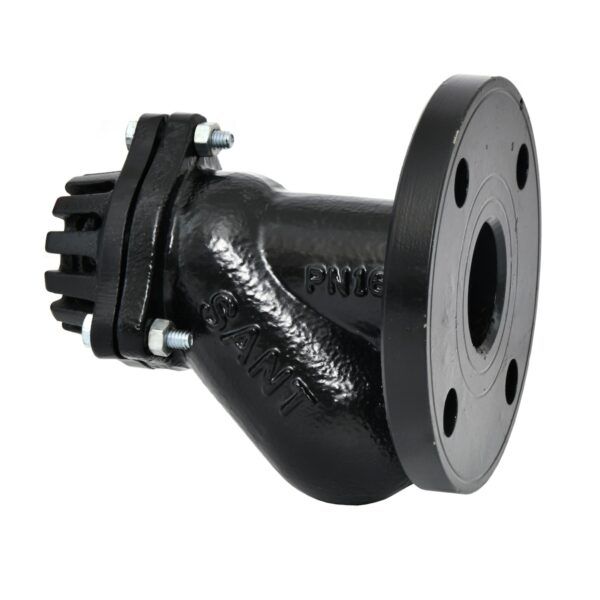

Product: Sant C.I. Ball Foot Valve
Type of Pattern: Y Type Pattern
Pressure/Class/Rating: PN16
Body Material cum standard: Cast Iron to IS:210 FG 200
Type of Ball: MS Rubber Coated
Seat Ring: Nitrile Rubber
Strainer: Cast Iron to IS:210 FG 260
End Details: Flanges as per IS:1538
Body Test Pressure: 2.4MPa (Hyd.)
Seat Test Pressure: 1.6MPa (Hyd.)

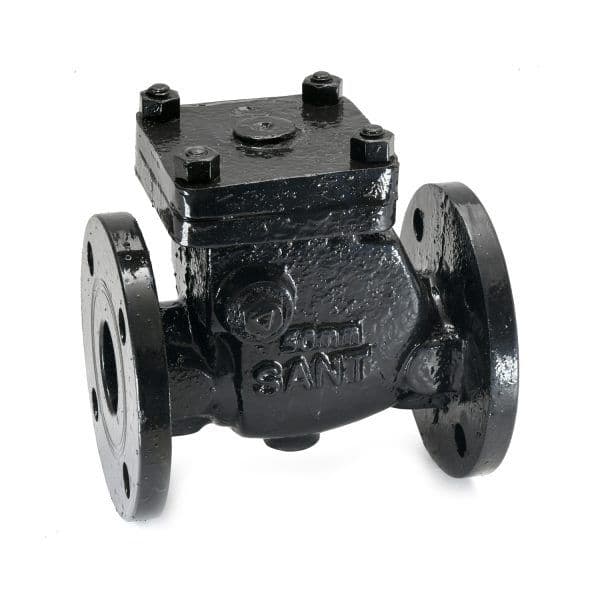

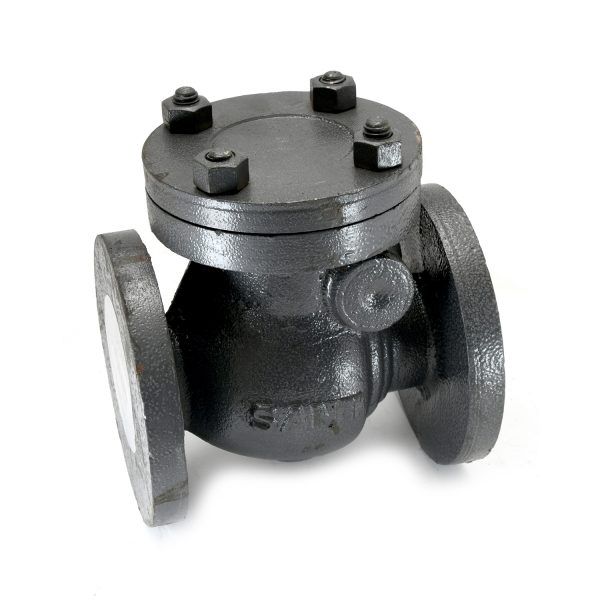

Product: Sant C.I. Swing Check Valve
Product Standard: BS:EN-12334/BS: 5153
Type of Pattern: Straight Type
Pressure/Class/Rating: Class 125
Body Material cum standard: Cast Iron IBR 86 to 93 Grade A
Product Description: Bolted Cover
Type of Seat: Renewable
Type of Disc: Renewable Disc
Trim: SS-410
End Details: Flanges as per BS 10 Table F Undrilled
Body & Seat Test Pressure: Body 300Psig Seat 200Psig. Hyd.
Working Pressure: Max BOP 150Psig (10.54 kg/cm²)
