Product: Sant C.I. Wedge Gate Sluice Valve
Product Standard: IS-14846 duly ISI Marked
Pressure/Class/Rating: PN 1.0 PD Type
Body Material cum standard: IS-210 Gr. FG-200 Cast Iron
Product Description: Bolted Bonnet inside screw non-rising stem
Type of Seat: Renewable
Type of Wedge: Solid Wedge
Trim: Cu-Alloy Rings, stem SS (12 Cr. 12)
Gland Packing: Expanded Pure Flexible Graphite
End Details: Flanges as per IS 1538 F/F Drilled
Body Test Pressure: 1.5 MPa Hyd.
Seat Test Pressure: 1.0 MPa Hyd.

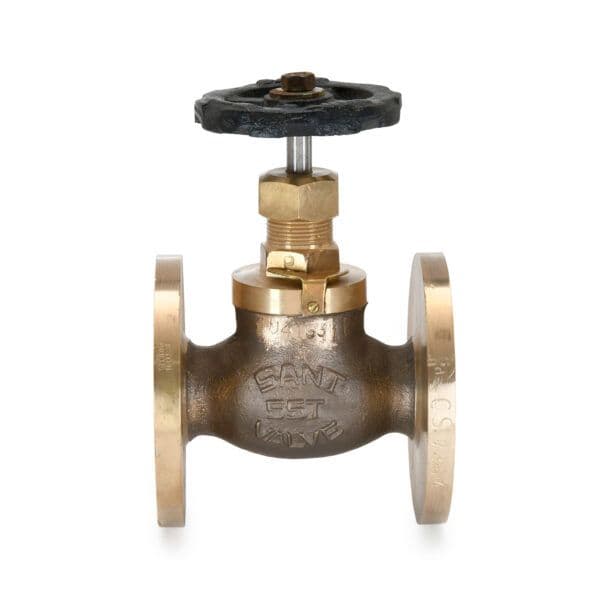

Product: Sant Bronze Globe Steam Stop Valve
Type of Pattern: Straight Type
Body Material cum standard: Bronze IBR Clause 282 (a) IV GrB
Product Description: Screwed in bonnet inside screw rising stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: SS AISI-410
Gland Packing: Expanded Pure Flexible Graphite
End Details: Flanges as per BS 10 Table F (undrilled)
Test Pressure: Tested to 300Psig. Hyd. (21.09 kg/cm² (Hyd.)
Working Pressure: Max. BOP 150Psig. (10.54kg/cm²) at 435°F(225°C)

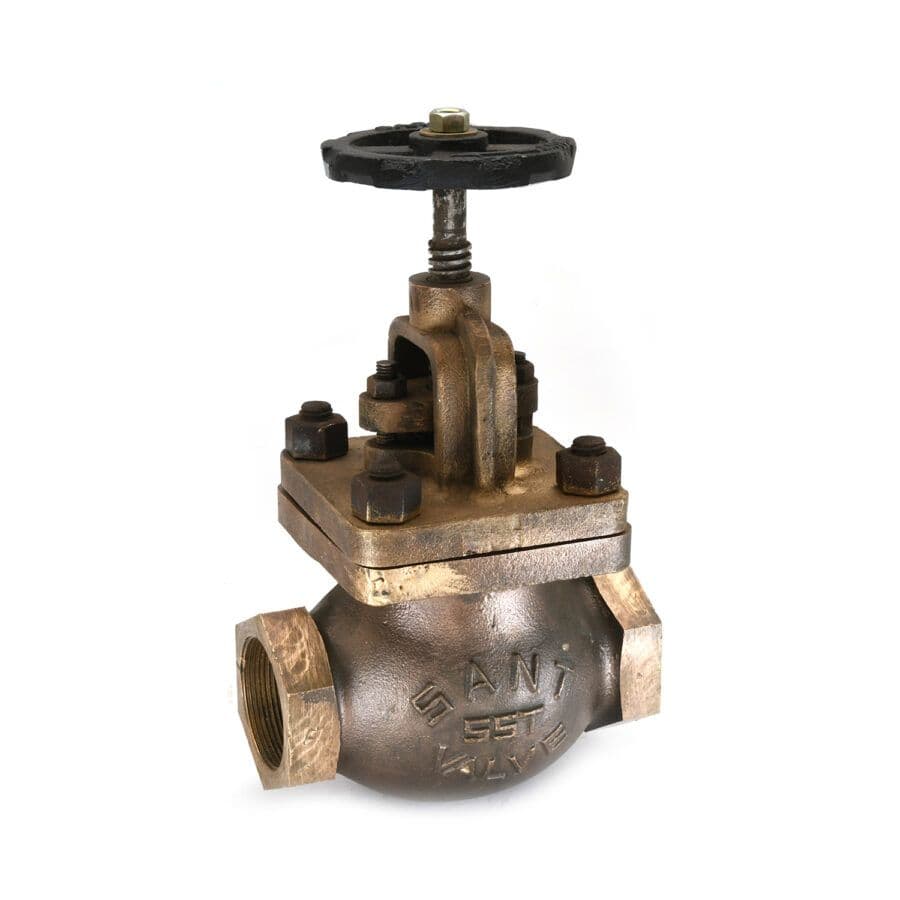

Product: Sant Bronze Globe Steam Stop Valve
Type of Pattern: Straight Type
Body Material cum standard: Bronze IBR Clause 282 (a) IV GrB
Product Description: Bolted bonnet O/S & Yoke type rising stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: SS AISI-410
Gland Packing: Expanded Pure Flexible Graphite
End Details: Screwed female BSP Taper Threads to BS 21
Test Pressure: Tested to 500Psig. Hyd. (35.15 kg/cm² (Hyd.)
Working Pressure: Max. BOP 250Psig. (17.58kg/cm²) at 435°F(225°C)

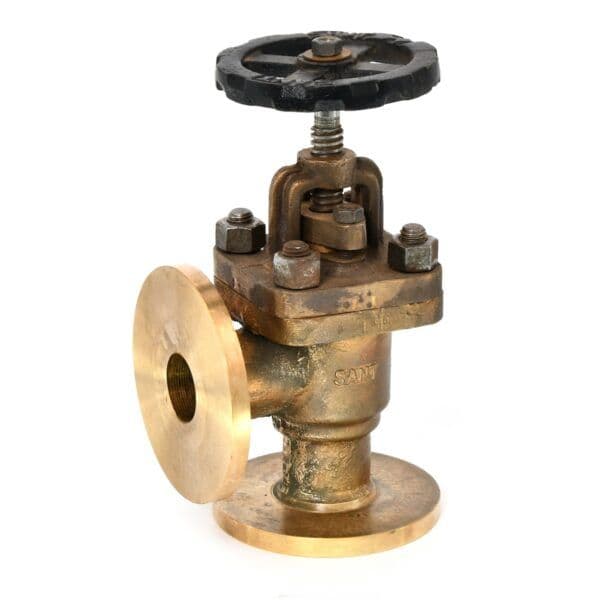

Product: Sant Bronze Controllable feed check valve
Type of Pattern: Right Angle / Straight Type
Body Material cum standard: Bronze IBR Clause 282 (a) IV GrB
Product Description: Screwed in bonnet O/s Yoke type rising stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: AISI 410 Stainless Steel
Gland Packing: Expanded Pure Flexible Graphite
End Details: Flanges as per BS 10 Table-H FF undrilled
Test Pressure: Tested to 500Psig. Hyd. (35.15 kg/cm² (Hyd.)
Working Pressure: Max. BOP 250Psig. (17.58kg/cm²) at 435°F(225°C)

Product: Sant Bronze Y Type Strainer
Type of Pattern: Y Type
Body Material cum standard: Bronze IBR Clause 282 (a) IV GrB
Product Description: Y Type Screwed in cover SS304 Screen having 0.5mm Dia perforations
End Details: Flanges as per BS-10 Table H, FF undrilled
Test Pressure: Tested to 500Psig. Hyd. (35.15 kg/cm² Hyd.)
Working Pressure: Max. BOP 250Psig. (17.58 kg/cm²) at 435°F(225°C)

Product: Sant Electromagnetic Flow Meter
Type of Pattern: Electro Magnetic Type IP 67, Voltage 85 to 240v(AC)
Pressure/Class/Rating: PN 16
Maximum Working Temperature upto size 200mm with PTFE: <150°C
Maximum Working Temperature above 300mm size: <90°C
End Details: Flanges as per CL-150
Maximum Working Pressure: 1.6 Mpa
Output: Pulse/4~20mA/RS 485

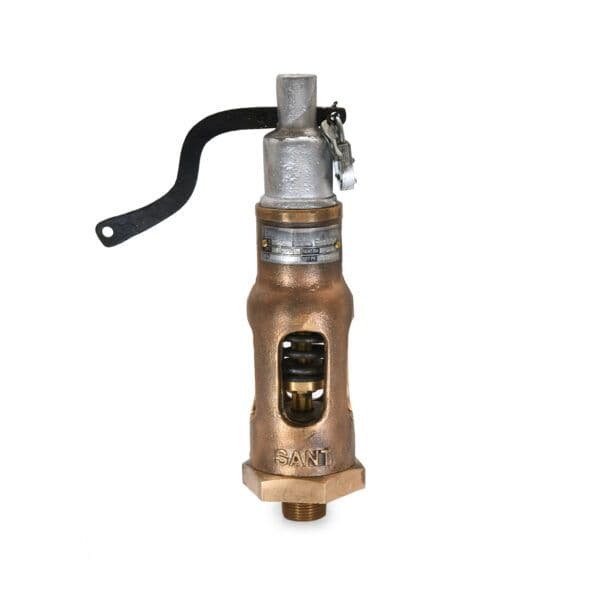

Product: Sant Bronze Safety Valve
Body Material cum standard: Bronze IBR Clause 282 (a) IV GrB
Product Description: Pop type open discharge
Type of Seat: Integral
Type of Disc: Renewable Disc
Trim: Cu alloy
End Details: Inlet screwed male BSP Taper threads to BS-21
Test Pressure: Tested to 500Psig. Hyd. (35.15 kg/cm² (Hyd.)
Working Pressure: Max. BOP 250Psig. (17.58kg/cm²) at 435°F(225°C)
*Note: Please advice set pressure while placing order
