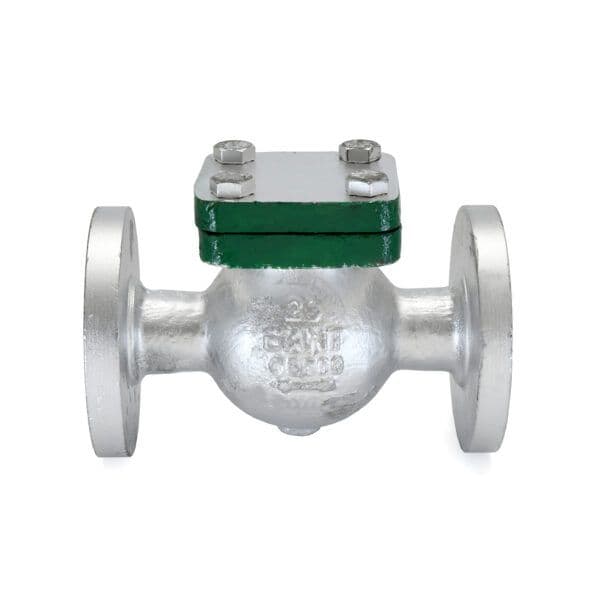

Sant Cast Steel Horizontal Check Valve CS 8A

Product: Sant Cast Steel Swing Check Valve
Product Standard: Conforming to BS:EN-16767/ANSI B 16.34/BS:1868
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Bolted Cover
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Hinge Pin: AISI 410 Stainless Steel
End Details: Flanges as per ASME B 16.5 Class-150 R.F. Undrilled
Body Test Pressure: 30barg Hyd. (435Psig.)
Seat Test Pressure: 22barg Hyd. (320Psig.)

Product: Sant Cast Steel Gate Valve
Product Standard: Conforming to BS:EN-10434/API-600/BS:1414
Type of Pattern: Straight
Pressure/Class/Rating: Class-150
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Bolted Bonnet O/S Yoke type Rising Stem
Type of Seat: Renewable Seat
Type of Wedge: Solid / Flexible
Trim: SS AISI-410 with Aluminum Bronze Sleeve
End Details: Flanges as per ASME B 16.5 Class 150 R.F., undrilled
Body Test Pressure: 30barg Hyd. (435 Psig)
Seat Test Pressure: 22barg(320Psig.) Hyd. 6.9barg AIR (100Psig.)

Product: Sant Cast Steel Globe Valve
Product Standard: Conforming to BS 1873-1975
Pressure/Class/Rating: Class-300
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Bolted Bonnet O/S Yoke type Rising Stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim: SS AISI-410 component with Aluminum Bronze Yoke Bush
End Details: Flanges as per ASME B 16.5 Class-300 Undrilled
Body Test Pressure: 76barg Hyd. (1102 Psig.)
Seat Test Pressure: 56barg Hyd. (815Psig.) 6.9barg (100Psig.) AIR

Product: Sant Cast Steel Single Post Full Lift Safety Valve
Type of Pattern: Right Angle Enclosed Discharge
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Spring Loaded Full Lift
Trim: AISI 304
End Details: Inlet Flanges to BS 10 Table-H Outlet: Flanges to BS 10 Table-E
Body Test Pressure: 53kg/cmg Hyd.
Maximum Working Pressure: 26.5kg/cmg Hyd.
Maximum Working Temperature: 425°C

Product: Sant Cast Steel Y Type Strainer
Type of Pattern: Y Type
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Bolted Cover 'Y' Type
Trim: AISI 304, Screen 1.2mm dia perforation
End Details: Flanges as per BS10 Table F/Class-150
Body Test Pressure: 40kg/cm² Hyd.
Maximum Working Pressure: 20kg/cm²
Maximum Working Temperature: 400°C

Product: Sant Cast Steel Parallel Slide Blow Off Valve
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: Rack and Pinion operated with key
Disc & Body Ring: AISI 410 (Hard Faced)
End Details: Flanges as per ASME B 16.5 CI-300 R.F.
Body Test Pressure: 76 Barg. Hyd.
Minimum Working Pressure: 28.8kg/cm²
Maximum Working Pressure: 425°C

Product: Sant C.S. Sleeve packed water level gauge
Body Material cum standard: CCS (ASTM A-216 Gr. WCB)
Product Description: With automatic shut off device in the water ARM Right Hand/Left Hand Type
Trim: SS AISI-410 stem, SS 304 Ball
End Details: Flanges as per BS10 Table J F.F. Undrilled
Body Test Pressure: 700Psig. Hyd. 49.23kg/cm²g
Working Pressure: Max. BOP 350 Psig. 24.61kg/cm²g at 400°C
