Sant Bronze Ball Valve IS 20

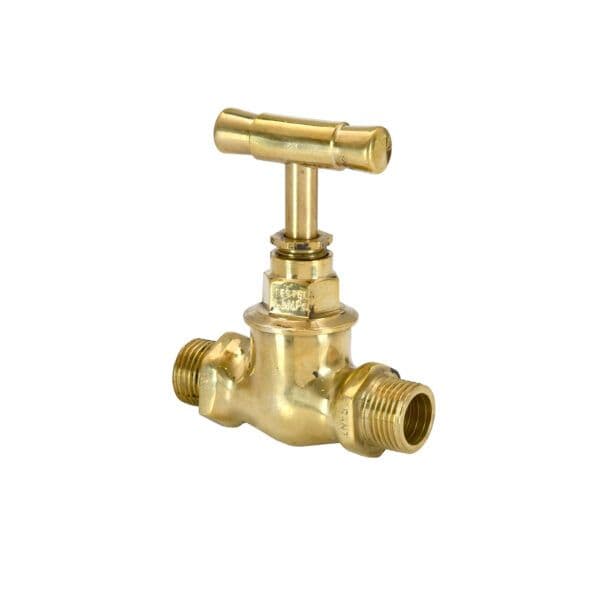

Product: Sant Brass Stop Valve
Product Standard: as per 15-781
Body Material cum standard: Brass IS-1264 DCB-2
End Details: Male or Female threads Parallel as per IS-554
Test Pressure: 1.5MPa Hyd.

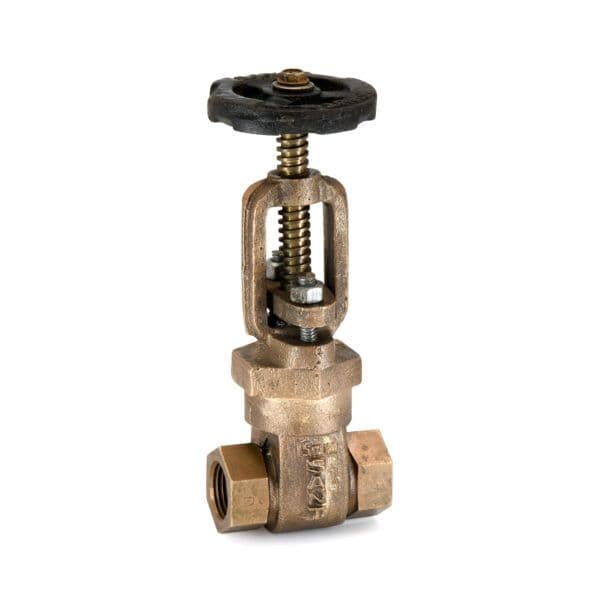

Product: Sant Bronze Gate Valve
Product Standard: As per IS-778
Pressure/Class/Rating: Class-1
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed In Bonnet, outside screw & Yoke Type Rising Stem
Type of Seat: Integral Seat
Type of Wedge: Solid Wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female threads to IS-554 Parallel
Body Test Pressure: 1.5MPa Hyd.
Seat Test Presuure: 1.0MPa Hyd.

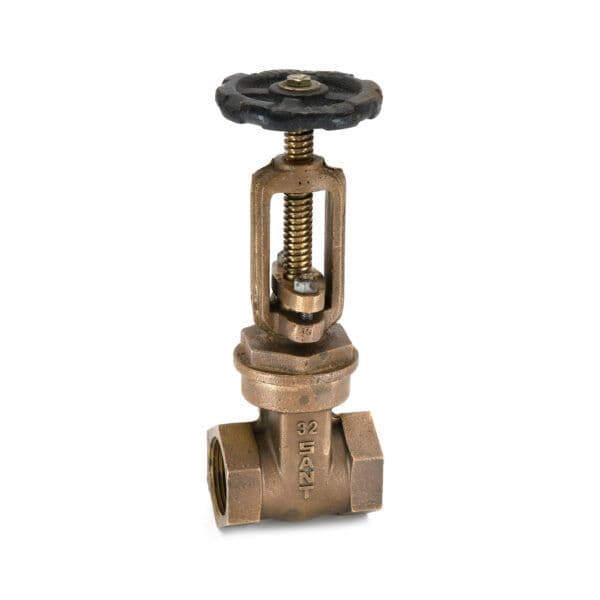

Product: Sant Bronze Gate Valve
Product Standard: As per IS-778
Pressure/Class/Rating: Class-2
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed In Bonnet, outside screw & Yoke Type Rising Stem
Type of Seat: Integral Seat
Type of Wedge: Solid Wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female threads to IS-554 Parallel
Body Test Pressure: 2.4MPa Hyd.
Seat Test Presuure: 1.6MPa Hyd.

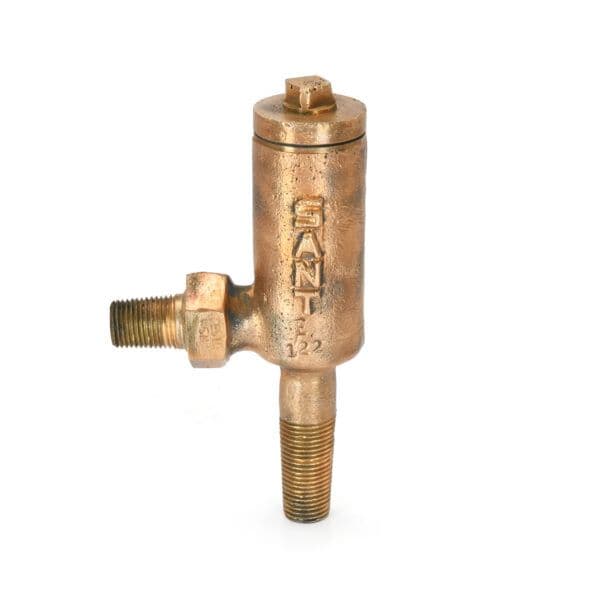

Product: SBM Bronze Ferrule
Type of Pattern: JCS WR Type
Body Material cum standard: Bronze IS:318 Gr. LTB 2
End Details: Screwed Male BSP Taper Threads
Gasket: CAF
Test Pressure.: 300Psig. Hyd.
Body Test Pressure: 21kg/cm²g Hyd.
Seat Test Pressure: 14 kg/cm²g Hyd.

Product: Sant Bronze Globe Valve
Product Standard: I5-778
Pressure/Class/Rating: Class-1
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Bonnet, Inside Screw, Rising Stem
Type of Seat: Integral seat
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Flanges as per IS-778 CI-1 FF (undrilled)
Body T.P.: 1.5MPa Hyd.
Seat T.P.: 1.0MPa Hyd.

Product: Sant Bronze Gate Valve
Product Standard: I5-778
Pressure/Class/Rating: Class-2
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Bonnet, Inside Screw, Rising Stem
Type of Seat: Integral seat
Type of Wedge: Solid wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Flanges as per IS-778 CI-2 F.F. undrilled
Body T.P.: 2.4MPa Hyd.
Seat T.P.: 1.6MPa Hyd.

Product: Sant Bronze Gate Valve
Product Standard: IS-778
Pressure/Class/Rating: Class-2
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Bonnet, Inside Screw, Non-Rising Stem
Type of Seat: Integral seat
Type of Wedge: Solid wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female threads to IS:554 parallel
Body T.P.: 2.4MPa Hyd.
Seat T.P.: 1.6MPa Hyd.

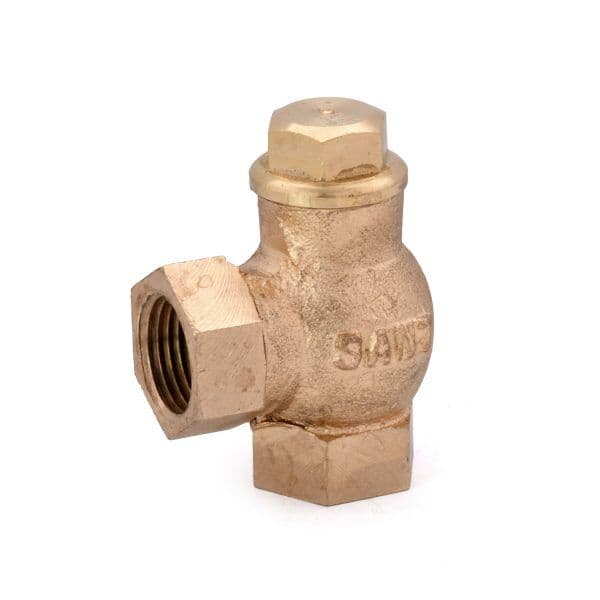

Product: Sant Bronze Right Angle Lift Check Valve
Pressure Rating: PN 16
Type of Pattern: Angle Type
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Cover
Type of Seat: Integral Seat
Trim: Cu Alloy
End Details: Screwed female threads BSP (Parallel)
Body T.P.: 24 kg/cm²g Hyd.
Seat T.P.: 16kg/cm²g Hyd.

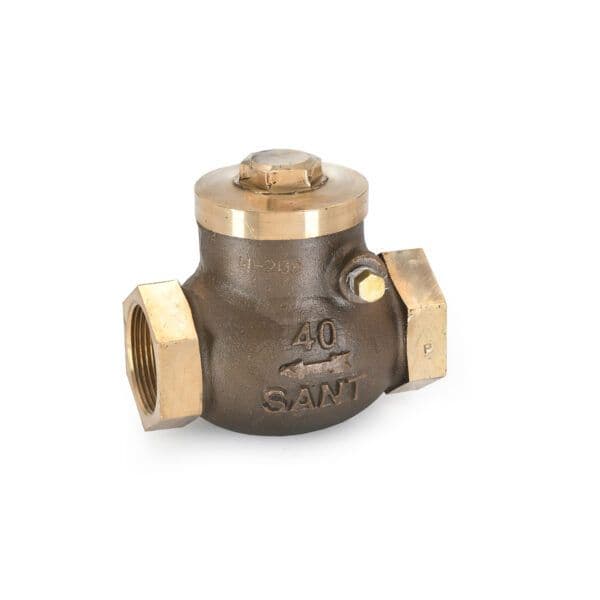

Product: Sant Bronze Swing Check Valve
Product Standard: As per IS-778
Pressure/Class/Rating: Class-2
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed In Cover
Type of Seat: Integral Seat
Trim: Cu-Alloy
End Details: Screwed female threads to IS-554 Parallel
Body Test Pressure: 2.4MPa Hyd.
Seat Test Presuure: 1.6MPa Hyd.
