Sant C.I. 'T' Strainer Flanged CI 19

Product: Sant C.I. Wedge Gate Sluice Valve
Product Standard: IS-14846 duly ISI Marked
Pressure/Class/Rating: PN 1.0 PD Type
Body Material cum standard: IS-210 Gr. FG-200 Cast Iron
Product Description: Bolted Bonnet inside screw non-rising stem
Type of Seat: Renewable
Type of Wedge: Solid Wedge
Trim: Cu-Alloy Rings, stem SS (12 Cr. 12)
Gland Packing: Expanded Pure Flexible Graphite
End Details: Flanges as per IS 1538 F/F Drilled
Body Test Pressure: 1.5 MPa Hyd.
Seat Test Pressure: 1.0 MPa Hyd.

Product: Sant C.I. Gate Valve
Type of Pattern: Clip Pattern
Body Material cum standard: Cast Iron IS 210 Gr. FG 200
Product Description: Clamped Bonnet Inside Screw Rising Stem
Type of Seat: Renewable
Type of Disc: Solid Wedge
Trim: Cu-Alloy
Gland Packing: Expanded Pure Flexible Graphite
End Details: Screwed Female BSP Parallel Threads to BS:21
Body Test Pressure: 21.09kg/cm² Hyd.
Seat Test Pressure: 14.06kg/cm²g Hyd.

Product: Sant C.I. Reflux Valve (Non-Return Valve)
Product Standard: IS 5312 Part-I, ISI MARKED
Type of Pattern: Straight Type
Body Material cum standard: IS-210 Gr. FG-200 Cast Iron
Product Description: Bolted Cover
Type of Seat: Integral Seat / Renewable
Type of Disc: Renewable
Trim: Body Seat Ring Gun Metal & Seat Ring Rubber
End Details: Flanges as per IS:1538
Body Test Pressure: 1.5 MPa Hyd.
Seat Test Pressure: 1.0 MPa Hyd.

Product: Sant Dual Plate Wafer Check Valve
Pressure/Class/Rating: PN-25
Body Material cum standard: Ductile Iron
Product Description: Wafer type spring loaded
Type of Seat: EPDM Rubber Lining
Type of Disc: SS 304 (CF-8)
Trim: Spring & Pins SS
End Details: Wafer type suitable for clamping between flanges as per ASME B 16.5 Class-150
Body Test Pressure: 3.8 MPa Hyd.
Seat Test Pressure: 2.7 MPa Hyd.

Product: Sant C.I. Butterfly Valve
Product Standard: Face to face BS:EN-593/BS: 5155
Type of Pattern: Short Pattern, Lever Operated
Pressure/Class/Rating: PN 1.6
Body Material cum standard: IS-210 Gr. FG 260 Cast Iron
Product Description: Wafer Type
Type of Seat: EPDM Rubber Lining
Type of Disc: CF-8M Stainless Steel
Stem: AISI-304 Stainless Steel
End Details: Suitable insertion between Flanges as per BS-10 Table D/E CI-125
Body Test Pressure: 2.4 MPa Hyd. (348 Psig.)
Seat Test Pressure: 1.6 MPa Hyd. (232 Psig.)

Product: Sant C.I. Butterfly Valve Wafer Type (Lever Operated)
Type of Pattern: Replaceable Seat & Disc
Pressure/Class/Rating: PN16
Body Material cum standard: Cast Iron to IS:210 FG 260
Type of Seat: EPDM Lining
Type of Disc: SG Iron
Stem: AISI-410
End Details: Suitable between Flanges ASME B 16.1 CI-125
Body Test Pressure: 2.4MPa Hyd.
Seat Test Pressure: 1.8MPa Hyd.

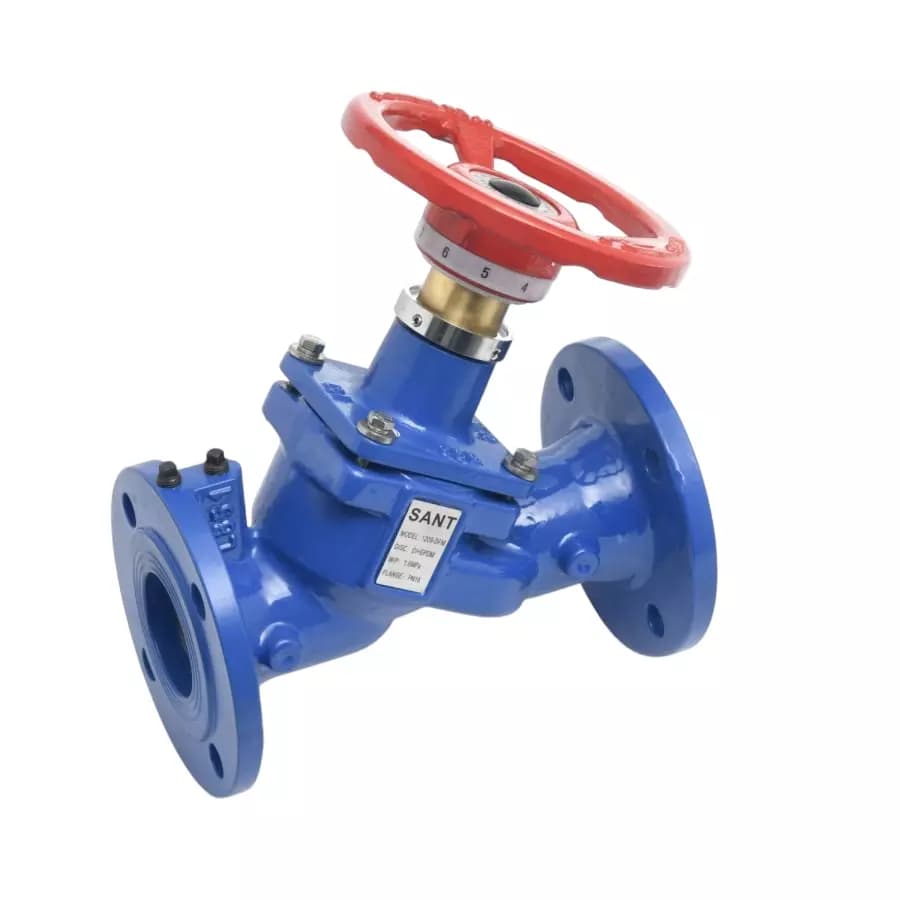

Product: Sant CI Balancing Valve (Flanged)
Pressure/class/rating: PN-16
Body Material cum standard: Cast Iron IS: 200 Gr. FG 200
Trim: DI+EPDM
Stem: AISI 410
End Details: Flanged as per (PN 16/BS:EN-1092)
Seat Test Pressure: 1.6 MPa Hyd (232Psig). Hyd.
Body Test Pressure: 2.4 MPa Hyd (348 Psig). Hyd.
Maximum Operating Temp.: 120°C

Product: Sant D.I. Resilient Seated Gate/Sluice Valve
Pressure Rating: PN 16
Product Description: DI Non Rising Stem Resilient Soft Seated
Type of Wedge: DI+EPDM
Trim: AISI 420
Gland Packing: O Ring NBR
End Details: Flanges as per IS-1538 R/F Drilled
Pressure Rating: PN-16
Body Test Pressure:2.4MPa Hyd.
Seat Test Pressure: 1.6MPa Hyd.
