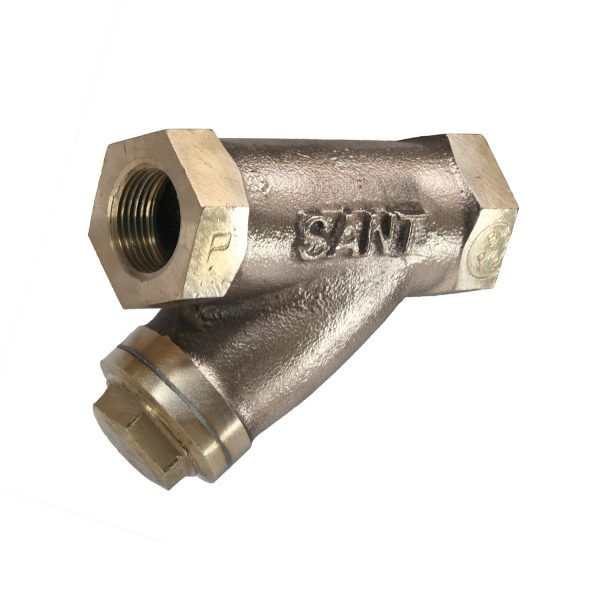

Sant Bronze Y Type Strainer IBR 12A
Available Variants
Excluding GST and Shipping
Prices are indicative and may vary based on quantity and specifications
Product Description
Product Overview The Sant Bronze Y Type Strainer IBR 12A is a high-quality strainer designed for industrial applications, featuring a Y-type pattern and a bronze body that meets IBR Clause 282 (a) IV GrB standards.
Technical Specifications
- Brand: Sant
- Type of Pattern: Y Type
- Body Material: Bronze IBR Clause 282 (a) IV GrB
- Screen Material: SS304
- Perforation Diameter: 0.5mm
- End Details: Screwed Female BSP Taper Thread to BS-21
- Test Pressure: 500Psig (35.15 kg/cm² Hyd.)
- Working Pressure: Max. BOP 250Psig (17.58 kg/cm²) at 435°F(225°C)
Industrial Applications
- Water treatment
- Chemical processing
- Oil and gas
- Power generation
