Sant Bronze Gate Valve IS 6A

Sant Bronze Gate Valve IS 6A

Sant Valves: Leading Industrial Valves for Quality & Performance logo
Sant Valves: Leading Industrial Valves for Quality & Performance

Available Variants

Excluding GST and Shipping
Prices are indicative and may vary based on quantity and specifications

Product Description

Product Overview The Sant Bronze Gate Valve is a high-quality valve designed to meet the needs of various industrial applications. It features a screwed-in bonnet, inside screw, and rising stem, making it a reliable choice for controlling fluid flow.

Technical Specifications

  • Brand: SANT
  • Product Standard: IS 778
  • Pressure/Class/Rating: Class 2
  • Body Material: Bronze (IS:318 GR LTB-2)
  • Type of Seat: Integral seat
  • Type of Wedge: Solid wedge
  • Trim: Cu-Alloy
  • Gland Packing: PTFE
  • End Details: Flanges as per IS-778 CI-2 F.F. undrilled
  • Body T.P.: 2.4 MPa Hyd.
  • Seat T.P.: 1.6 MPa Hyd.

Industrial Applications

  • Water supply systems
  • Industrial process control
  • Chemical processing
  • Oil and gas industry

Similar Products

Sant Brass Stop Valve IS 19

Sant Brass Stop Valve IS 19

Starting from
₹534
₹822
35% OFF
Product: Sant Brass Stop Valve
Product Standard: as per 15-781
Body Material cum standard: Brass IS-1264 DCB-2
End Details: Male or Female threads Parallel as per IS-554
Test Pressure: 1.5MPa Hyd.
WhatsApp
Sant Bronze Ball Valve IS 20

Sant Bronze Ball Valve IS 20

Starting from
₹515
₹793
35% OFF
Product: Sant Bronze Ball Valve
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: 2 pc design lever operated
Type of Seat: Renewable PTFE Seats
Port Opening: Standard Bore
Trim: Stem SS AISI 410 Ball SS 304/CF8
Gland Packing: Teflon
End Details: Screwed female threads to IS-554 Parallel
Body Test Pressure: 40 kg/cm²g Hyd.
Seat Test Pressure: 25 kg/cm²g Hyd.
WhatsApp
Sant Bronze Gate Valve IS 5A

Sant Bronze Gate Valve IS 5A

Starting from
₹1,041
₹1,602
35% OFF
Product: Sant Bronze Gate Valve
Product Standard: IS-778
Pressure/Class/Rating: Class-2
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Bonnet, Inside Screw, Rising Stem
Type of Seat: Integral seat
Type of Wedge: Solid wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female thread to IS:554 parallel
Body T.P.: 2.4MPa Hyd.
Seat T.P.: 1.6MPa Hyd.
WhatsApp

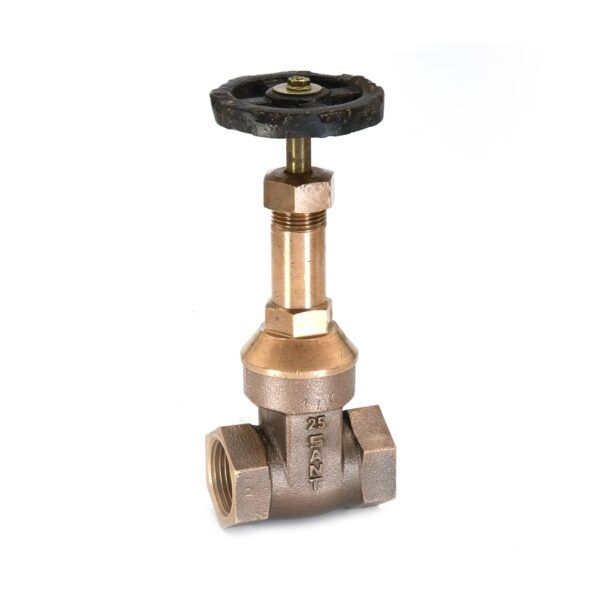

Sant Bronze Gate Valve Rising Stem IS 3

Sant Bronze Gate Valve Rising Stem IS 3

Starting from
₹786
₹1,209
35% OFF
Product: Sant Bronze Gate Valve Rising Stem
Product Standard: IS-778
Pressure/Class/Rating: Class-1
Body Material cum standard: Bronze IS:318 GR LTB-2
Product Description: Screwed in Bonnet, Inside Screw, Rising Stem
Type of Seat: Integral seat
Type of Wedge: Solid wedge
Trim: Cu-Alloy
Gland Packing: PTFE
End Details: Screwed female thread to IS:554 parallel
Body T.P.: 1.5MPa Hyd.
Seat T.P.: 1.0MPa Hyd.
WhatsApp
