PNEUMATIC ACTUATOR OPERATED THREE PIECE FLANGED END BALL VALVE

Available Variants

Excluding GST and Shipping
Prices are indicative and may vary based on quantity and specifications

Product Description

Product Overview The PAFB-422 Pneumatic Actuator Operated Three Piece Flanged End Ball Valve is a high-quality valve designed for medium to high-pressure applications.

Technical Specifications

  • Brand: Generic
  • Model No.: PAFB-422
  • Product Standard: BS: 5351
  • Actuator: Double Acting Type with Air Pressure of 8 Bar (Maximum)
  • Pressure/Class Rating: Class 150
  • Body Material: Cast Stainless Steel (ASTM A351 CF8)
  • Port Opening: Full Bore
  • Type of Seat: Renewable Seat
  • Trim: Stem & Ball SS (ASTM A351 CF8/CF8M)
  • Seat Ring & Gland Ring Packing: Teflon (PTFE)
  • End Details: Flanges as per ASA -150 (Drilled)
  • Test Pressure: B.T.P. – 30 bar Hyd., S.T.P. - 22 bar Hyd., 7 Bar Air

Industrial Applications

  • Oil and Gas
  • Chemical Processing
  • Power Generation
  • Water Treatment

Similar Products

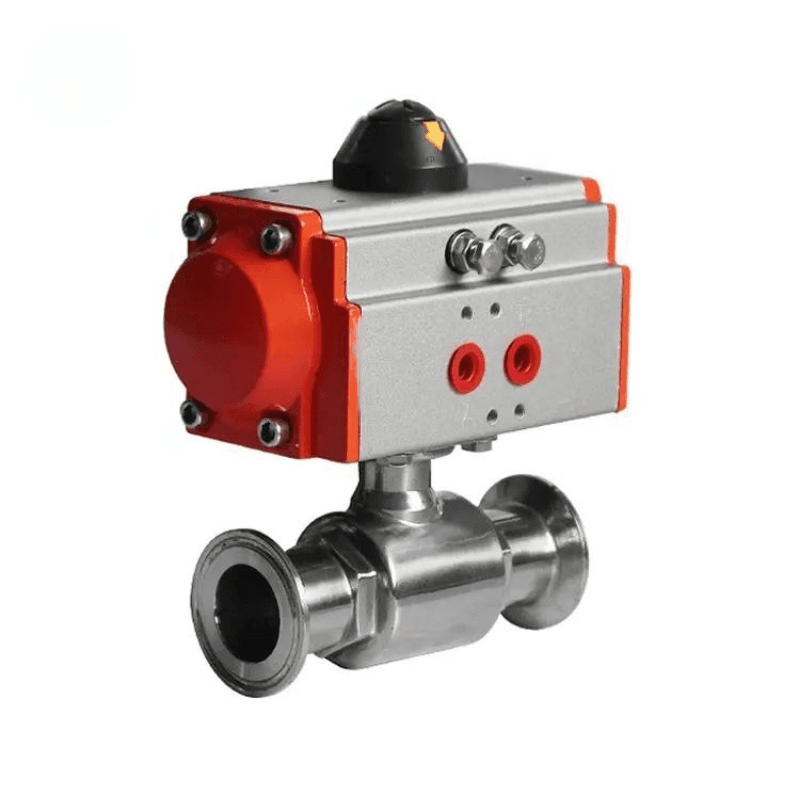

Actuator with TC End PSS-075
